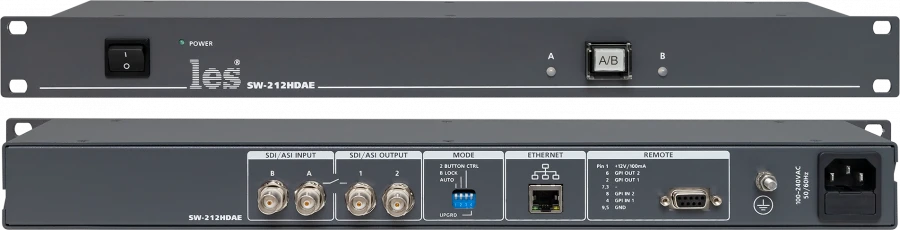

SW-212HDAE - 2-in-1 standby switch for 3G/HD/SD-SDI and DVB-ASI signals

Standalone Communication Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

SW-212HDAE is designed for automatic or controlled switching of 3G/HD/SD-SDI and DVB-ASI TS signals. It has two main modes of operation: 2-in-1 switch or automatic standby switch. In the first case the device is controlled by a button on the front panel or remotely, in the second case it analyses the signal presence on each input and can automatically switch to the backup input in case of signal loss on the main input. The alarm state latching mode allows the switch to remain on the backup input even after the main input signal is restored. The signal path includes two automatic input amplifiers and a 2-in-1 switch with a carrier recovery unit. Adaptive frequency correction and carrier recovery are performed in the signal path. In case of power failure, the signal from input "A" is fed to output "1" via a relay. Manual local control is performed by a button on the front panel, via Ethernet or GPI signals.

Technical Specifications

Format of signals to be processed	3G/HD/SD-SDI, DVB-ASI
Number of inputs	2
Number of outputs	2
Type of inputs/outputs	with common ground
Inlet / outlet flow rate	0.27...2.97
Input / output resistance	75 ohm
Maximum length of corrected cable type Belden 8281 on a 1.5 Gbps stream	150 m
Type of signal connectors	BNC
Ethernet network type	100 Base-TX/10 Base-T
Ethernet socket	RJ-45
Number of GPI inputs	2
Number of GPI outputs	2
GPI connector type	DB9 female
GPI input signal type	level / pulse
Power supply voltage	100...240 V
Power consumption	10 W
Operating temperature range	5...40 °C
Overall dimensions (W x H x D)	483...44 mm
Weight	1.63 kg

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
