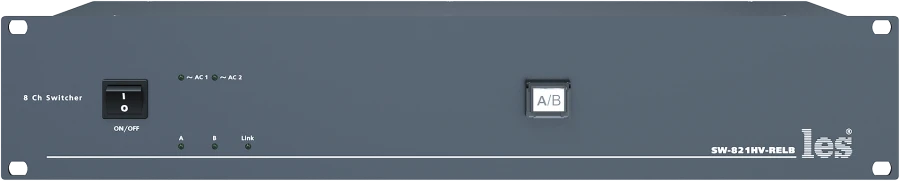

SW-821HV-RELB - Relay switch for HD/SD-SDI, DVB-ASI and CVBS signals. 8 channels 2 in 1. Remote control via Ethernet and

Standalone Communication Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

The redundancy switch ("changover"), is 8 independent 2x1 relay switches in one housing. The switch supports CVBS, HD/SD-SDI and DVB-ASI signals.- The switching of signals is asynchronous and without state memorisation.- In case of network power failure the "Com" outputs are connected to the "A" inputs.- The switch is remotely controlled via Ethernet or GPI signals, locally - by a button on the front panel. When the local button is pressed, all channels are switched at once, while the remote control allows channel-by-channel switching.- The device has two power supplies.

Technical Specifications

Ethernet connector type	RJ-45
Supported Ethernet type	100 Base-TX/10 Base-T
Maximum allowable voltage in the path	5 V
Transmission coefficient of the path in the range 0 - 1.5 GHz, not worse	-0.5
Overall dimensions (W-W-H)	123 mm
Operating temperature range	5...40 °C
Transient attenuation between inputs "A" and "B" in the range 0 - 1.5 GHz, not less than	45
Number of power supplies	2
Power consumption	10 W
Power supply voltage	100...240 V
GP connector type	DB-9 female
Number of GPI inputs	8 (or 6)
Input switching torque	asynchronous
Wave impedance of the path	75 ohm
Type of signal connectors	BNC
Number of outputs per channel	1
Number of inputs per channel	2
Number of independent switches (channels) in one enclosure	8
Supported signal format	HD/SD-SDI, DVB-ASI, CVBS
GPI input signal type	level

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
