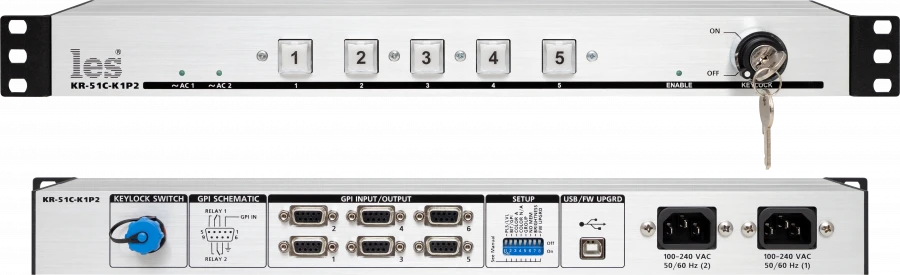

KR-51C-K1P2 - Active control panel, GPI signals, 5 identical channels, 1 enable key, PC control.

The remote control is designed to control external devices using GPI signals formed at the outputs of the device by pressing the button on the front panel. You can control and configure the remote control locally or remotely from a PC via USB cable. Additionally, the remote control is equipped with an output with an enabling key. When the key is switched to the "ON" position, a pair of contacts on the "KEYLOCK SWITCH" output is closed and one of the following actions is performed: buttons are blocked or all relays are switched to the inactive state. Formation of GPI signals by pressing buttons on the front panel is completely independent from the operation of the enabling key and represents an independent path. When the power supply is switched off, the relay pairs are open, and when the power is switched on again, the state of the control panel is restored. The buttons of the panel can be combined into "dependency groups", i.e. pressing a button switches it on while switching off another button. The warranty period is 24 months.
