SW-622HDE-12G - 6 channel 2 in 1 switch for 12G/3G/HD/SD-SDI

Standalone Communication Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

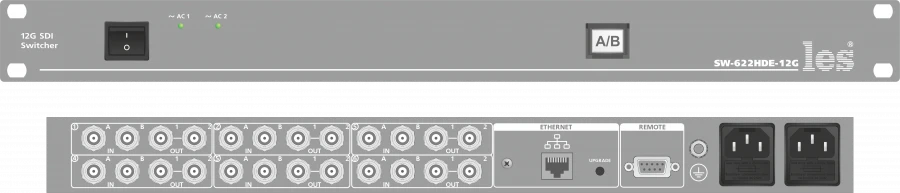

SW-622HDE-12G is designed for manual switching of 12G/3G/HD/SD-SDI digital serial signals.
The device contains six independent switches (channels) 2 in 1 with branching on the output by 2. Control is performed by means of a button located on the front panel, GPI signals, via Ethernet via web-interface or SNMP protocol. Cable correctors at the inputs automatically correct signals after passing the cable line, built-in carrier frequency restorers at the outputs. The switch writes an event log, which can be viewed through the web-interface. Installed two power supplies, operating in hot standby, are designed to power the device from two independent feeders or redundant power supplies.

Technical Specifications

Standard of processed signals	12G/6G/3G/HD/SD-SDI/DVB-ASI
Number of outputs per switch	1 (branching into 2)
Connector type	BNC
Type of path	Digital, with carrier correction and recovery
Input / output resistance	75 ohm
Maximum permissible voltage on inputs	5 V
Maximum length of corrected cable type Belden 8281 at 1.5 Gbit/s flow rate	150 m
Nominal output signal magnitude	0.8 V
Inlet/outlet flow rate	0.27...12
Output edge duration, not more (SD-HD)	800...250
Power supply voltage	100...240 V
Power consumption	8 W
Operating temperature range	5...40 °C
Overall dimensions, (W - H - D)	483...44 mm
Weight	2.4 kg

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
