Available for Import

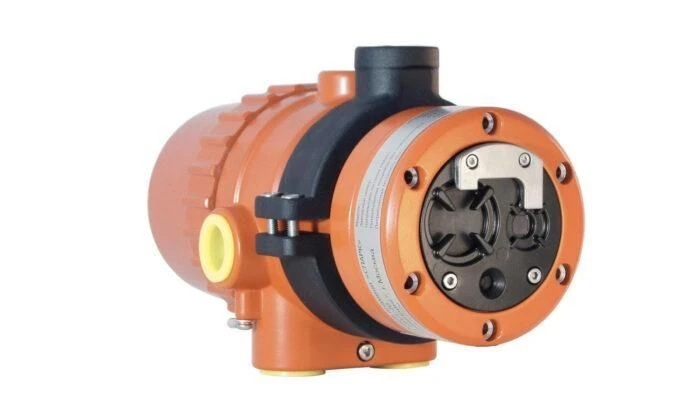

SPARK Explosion-Proof Infrared Flame Detector IP 330/1-20 for Safety Monitoring
Manufacturer:
SPECPOZHINZHENIRING OJSC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description
Fire detector flame detector explosion-proof "SPARK" IP 330/1-20 IR (infrared) range is a development of a well-proven line of flame detectors IP 330/1-20. In this model, design changes have been made, which allowed to reduce production costs, increasing the share of the Russian component, while maintaining all the technical characteristics of the fire detector IP 330/1-20.
Fire flame detector "SPARK" IP 330/1-20 consists of an IR sensor and microprocessor control controller, housed in a single explosion-proof enclosure.
Fire flame detector "SPARK" IP 330/1-20 consists of an IR sensor and microprocessor control controller, housed in a single explosion-proof enclosure.
Specifications
Power supply voltage
24 V
Operating temperature range
60...90 °C
Sensitivity levels
low;medium;high;very high
Explosion protection marking
1ex d iis t6/t5/t4 gb x
Degree of protection
ip66
Housing material
????????;?????
Assignment
Determination of fire centres
Designation
fire flame detector "spark"
Consumption current at 12 V power supply, mA
5
Viewing angle of detector, deg.
Flat grinder, Specialised grinder
Service life
15 year
Heated optics
Armoured glass
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
