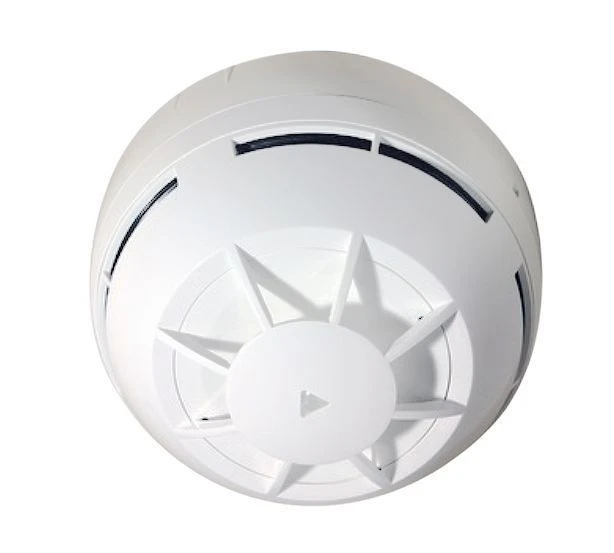

Maximum Addressable Thermal Fire Detector IP 101-80/2-V for Reliable Fire Safety

Fire detectors addressable analogue thermal maximum IP 101-80/2-V Aurora-TI-V izp.2 are designed to detect ignitions in enclosed spaces of various buildings and structures. Heat detectors Aurora-TI-V batch 2 react to a controlled sign of fire - exceeding the ambient temperature of the set threshold value, as fire detectors thermal maximum. In detectors Aurora-TI-V batch 2 provides the possibility of disconnecting a section of the signal line in case of short circuit.

Electrical insulation between the detector connection terminals and the housing withstands for one minute without breakdown and surface discharge test voltage of 500 V sinusoidal form sine wave frequency of 50 Hz. Overall dimensions of the detector, not more: diameter - 107 mm; height - 47 mm. Weight of the detector with the basic base - not more than 0.15 kg.

Average MTBF of the detector - not less than 60 000 hours. The average service life of the detector - at least 10 years.
