Remote Start Device for Smoke Removal Systems Spectron-512-Exd-H-UDP-02 Available for Import

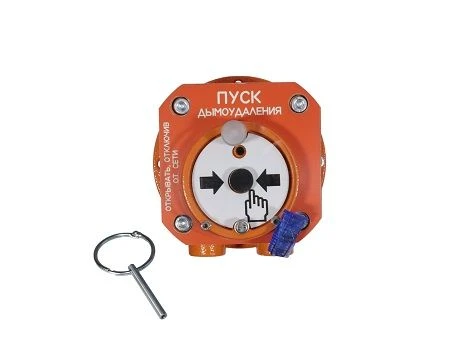

Remote Start Device for Smoke Removal Systems Spectron-512-Exd-H-UDP-02

Fire Alarm Detectors
Manufacturer: SPEKTRON LLC
Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Available Models

Spectron-512-Exd-N-UDP-02-Modbus remote starter Spectron-512-Exd-A-UDP-02 remote starter device Spectron-512-Exd-A-UDP-02-HART remote starter device Spektron-512-Exd-N-UDP-02-HART remote start device Spektron-512-Exd-A-UDP-02-Modbus remote start device

Description

Designed for manual switching on of "Smoke extraction" systems. It has a function of self-testing and transmission of the fault signal. 2 and 4-wire connection.

Temperature range from -65°C to +85°C. IP66/IP68. Upit - 9...28 V.

Overall dimensions 123x106x122. Enclosure - stainless steel. Explosion protection marking.

Ex db I Mb/1Ex db IIC T6 Gb/ Ex tb IIIC T85ºC Db. The control centre transmits the "Start" signal to the control panel when the drive element is pressed. When the drive element returns to the initial position, the control centre stops sending the "Start" signal.

Specifications

Weight
2.6 kg
Overall dimensions
123x106x122 mm
Operating temperature range
85 °C
Operating temperature
(65);+85 °C
Designation
Explosion-proof remote starter
Assignment
Designed for manual activation of "Smoke extraction" systems
Explosion protection marking
PB Ex mb I Mb X/ 1Ex mb IIC T6 Gb X/ Ex mb IIIC T85ºC Db X
Housing material
stainless steel
Power supply voltage
9...28 V
