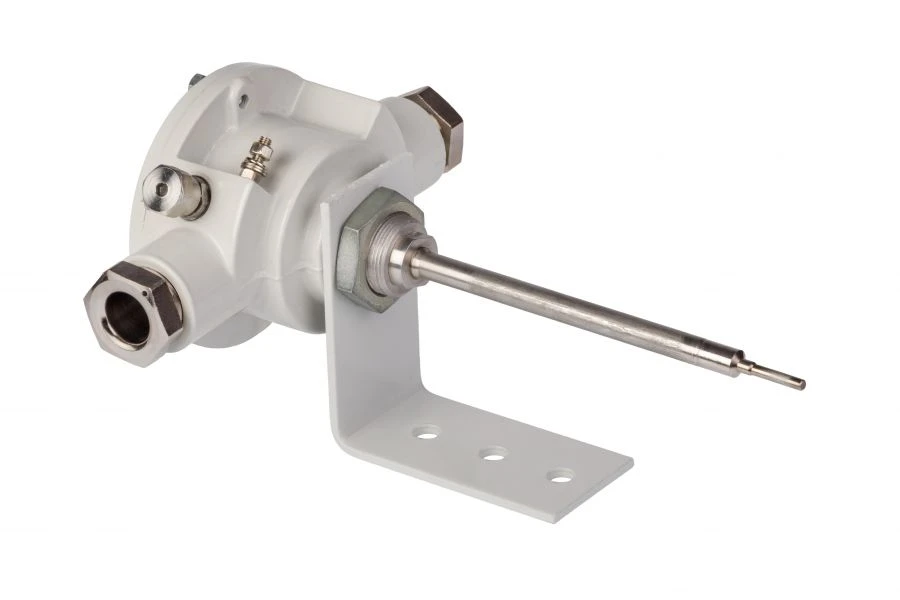

Fire Heat Detectors IP101-1V-ADR for Addressable Systems and Fire Safety

Fire Alarm Detectors

Manufacturer: CJSC NPK "ETALON"

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

Fire heat point heat detectors maximum and maximum differential addressable explosion-proof IP101-1V-R3, IP101-1 Fire detectors thermal point maximum and maximum differential non-addressable explosion-proof IP101-1V, IP101-1V Fire detectors thermal point fire detectors unaddressed maximum and maximum-differential explosion-proof IP101-1V, IP101-1V

Description

Fire detectors thermal point addressable, maximum and maximum differential explosion-proof are used as part of fire alarm systems and are designed to provide fire notification when the temperature of the controlled environment exceeds the preset value. The detectors realise the functions of maximum and maximum differential heat detectors according to GOST R 53325-2012. They can be used in hazardous areas of 1 and 2 classes. Can be with extended operating temperature up to +115 ° C (index P).

Specifications

DC supply voltage

10...30 V

Consumption current in standby mode (without taking into account polling)

0.005 A

Consumption current in triggering mode

0.01 A

Consumption current at polling

0.05 A

Explosion protection marking

1Ex db IIB T6 Gb X; 1Ex db IIB T4 Gb X (with P index)

Degree of protection against water and dust

IP66

Operating temperature of the enclosure

-60...115 °C

Operating temperature of the sheath temperature sensor

-60...150 °C

Number of cable glands in the enclosure

2 pcs

Diameter of cables to be inserted

14...18 mm

Seismic resistance

9 MSK-64.

Light indication

The LED is red in color. Flashing briefly in standby mode, permanently on in Fire mode

Weight

1.2 kg

Wiring diagram

Four-wire

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
