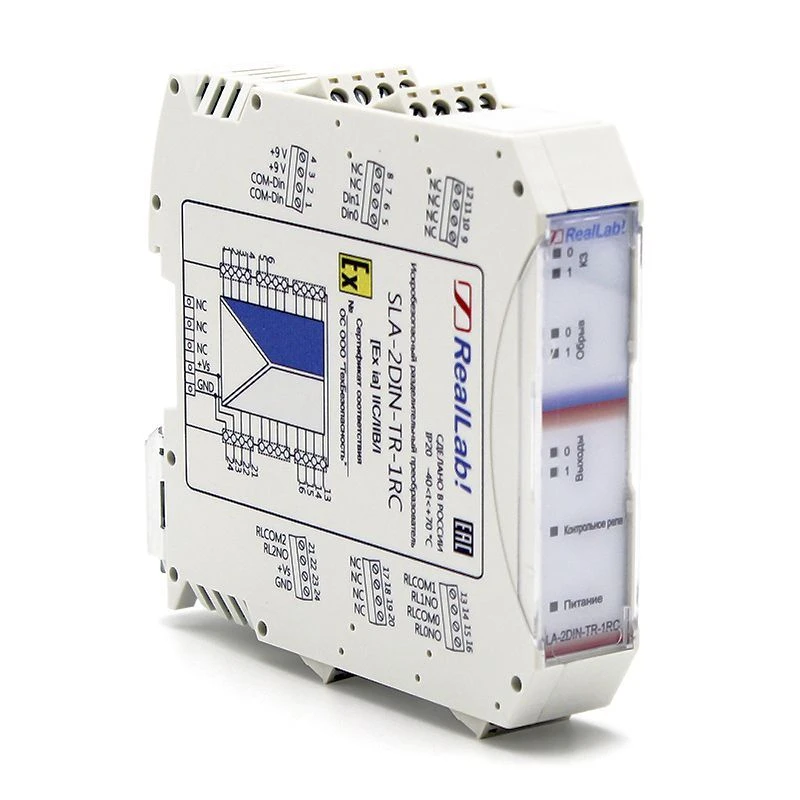

SLA-2DIN-TR-1RC NAMUR standard intrinsically safe digital signal divider converter with opto relay outputs and

Purpose: intrinsically safe transmission of discrete signals in NAMUR standard from hazardous area to explosion-proof area
Intrinsic barrier type: active with galvanic isolation
Signal type/sensor: binary signal in NAMUR standard
Number of sensors to be connected: 2
Signal parameters or connection method: 0-9 V
Number of optorelay outputs: 2
Parameters of optorelay outputs: 100mA/100V
Number of monitoring relays: 1
Control relay parameters: 4A/30V; 0,5A/250V
Galvanic isolation: group isolation of inputs, channel isolation of outputs - 2500V, control relay isolation - 3000V
Supply voltage: 10 - 30 V
Power consumption: max. 1.5 W
Explosion protection marking: [Ex ia] IIC/IIB/I
Operating temperature range: -40°C to +70°C
Average MTBF: 100 000 hrs.
Average service life, not less than 12 years
Overall dimensions (HxWxH): 99.4x22.5x109
Mounting: on DIN-rail
Degree of protection: IR20 according to GOST 14254-2015
Warranty: 18 months
