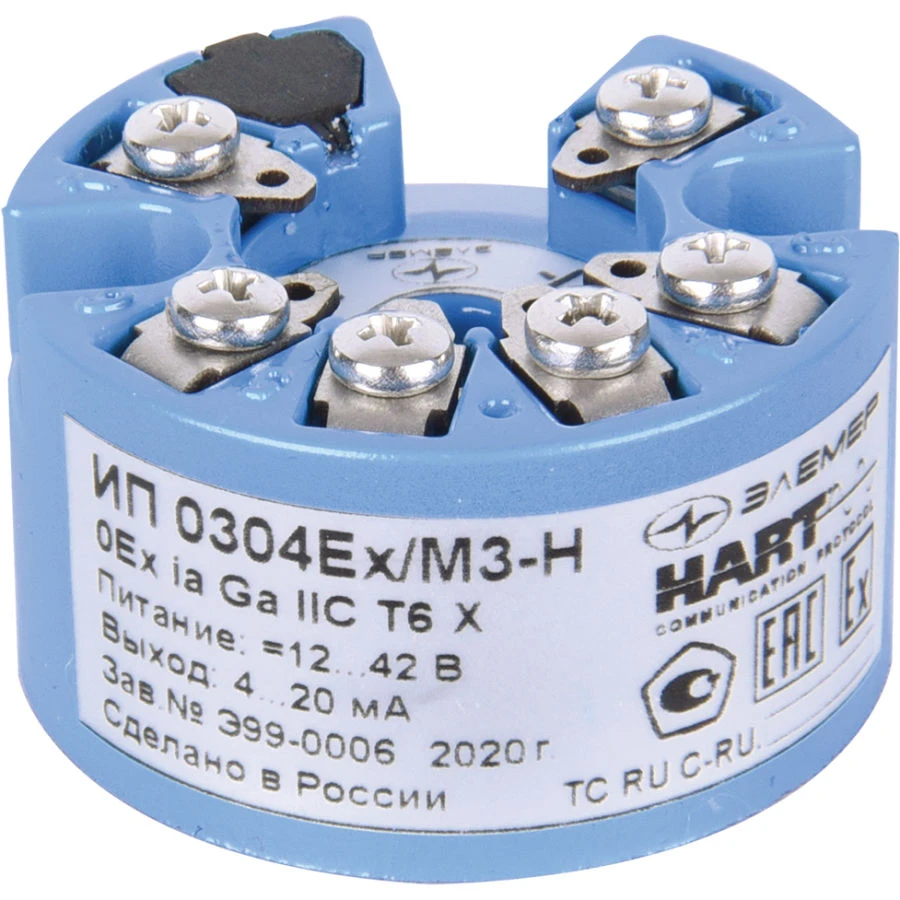

Converters measuring ?? 0304/M3-H-D44
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
The measuring converters ?? 0304/M3-N-D44 are designed for measurement and conversion of signals coming from resistance thermocouples (RT), platinum resistance thermocouples (TSP) with individual static characteristics (ISH), thermoelectric converters (TP), potentiometric devices of direct current in a unified output signal of direct current from 4 to 20 mA or from 4 to 20 mA with superimposed on it digital signal via HART protocol. The UUTs are used in various technological processes in industry and power engineering. Connection schemes: 2-, 3-, 4-wire. The possibility of working with a unified voltage signal -100 ... 100 mV and with potentiometric sensor signals (up to 10 kOhm) is realised.
Technical Specifications
| Vibration resistance according to GOST R 52931-2008 | Group F3 |
|---|---|
| Explosion protection | 0Ex ia IIA T6 Ga X, 0Ex ia IIB T6 Ga X, 0Ex ia IIC T6 Ga X, 0Ex ia IIA T5 Ga X, 0Ex ia IIB T5 Ga X, 0Ex ia IIC T5 Ga X, 0?? ia IIA T4 Ga X, 0?? ia IIB T4 Ga X, 0?? ia IIC T4 Ga X, 0?? ia IIA T3 Ga X, 0?? ia IIB T3 Ga X, 0?? ia IIC T3 Ga X, [Ex ia Ga] IIA X |
| Type of digital protocol | HART v.7 (4...20 mA) |
| Mounting of the measuring transducer (MT) | In the case of the temperature converter or on the metal strip "AD-01" for mounting on DIN-rail |
| Programmable error current | "Low" (3.7...3.8 mA) or "High" (20...23 mA) |
| Warranty period | 24 months (from commissioning) or 36 months (from shipment) |
| Inspection interval | Up to 4 years old |
| Electromagnetic compatibility (EMC) | IIIA |
| Overall dimensions | Diameter 44 mm, height 24 mm |
| Power supply voltage | =10...42 V (without HART) |
| Degree of protection against dust and moisture | IP20 |
| Output signal, mA | 4...20 |
| Climatic version | UHL3.1 according to GOST 15150-69 (from minus 60 to plus 70 C) |
| Type (NCC) of primary converter | CWD (ISX), 50M, 100M, 50P, 100P, Pt100, Pt500, Pt1000, 100H, 1000H, TJK(J), TMK (T), TKKn (E), TKK(L), TCA(K), TPP(S), TPP (S), TPP(B), TNN(N), TWR (A-1), -100 mV....+100 mV, -1000 mV...+1000 mV, 400 Ohm, 4000 Ohm, 10 kOhm |
| Compliance with GOST R IEC 61508-2-2012 "Functional safety of electrical, electronic, programmable electronic systems". | Safety Integrity Level 2 (SIL 2) |
| TC connection diagrams | 2-, 3-, 4-wire |
| Minimum measured temperature | From minus 210 C |
| Maximum measured temperature | Up to +1820 C |
| Possibility of simultaneous operation with two TCs using 2-wire scheme or with two TPs using built-in CHS | Armoured glass |
| Accuracy class | Up to 0.05 C (depending on the type of NCS) |
| Execution | General industrial, Explosion-proof "intrinsically safe circuit i" |
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
