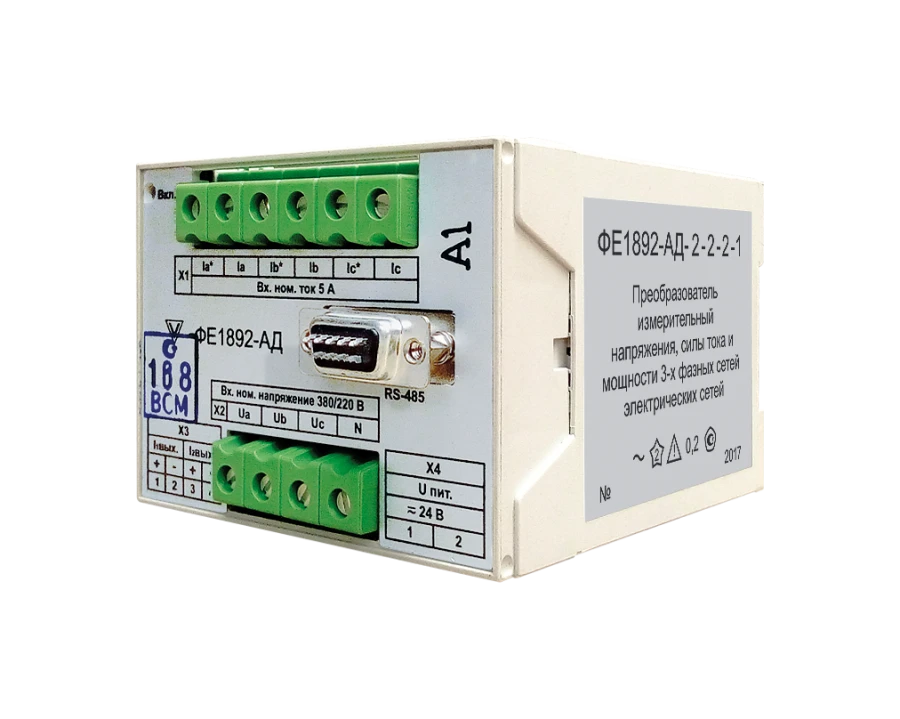

Converters measuring voltage, current and power of three-phase electric networks FE1892-AD

Digital Signal Converters

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Measurement and conversion of parameters of electric networks of alternating (frequency 50 Hz) and direct current. Rated current 1A or 5A. Input nominal phase-to-phase/phase-to-phase voltage: 100V/ 57.7V or 381/ 220V. 6 input channels, 2 unified DC signal outputs. Output signals -5...0...+5 mA, 0...20 mA, 4...20 mA, 4-12-20 mA. Measurement error ±0.2-0.5%. RS-485 (Modbus RTU), IP20. Safety class according to NP-001: 3, 4. The device is programmable.

Technical Specifications

Type of primary transducer (PT)	no
Metrological requirements	Present error of measured parameters: voltage and current strength - 0;2%; active and reactive power of alternating current - 0;5%; frequency within 45-55Hz - 0;04% on analogue output and 0;02% on digital output.
Mounting of the measuring transducer (MT)	On din-rail ts35 (din tn50022) using the clamp; located on the back of the inverter.
Length of mounting part	116 mm
Vibration resistance according to GOST R 52931-2008	complies with the requirements of group m40 according to gost 17516.1
Type of digital protocol	modbus rtu
Output, mA	4...12
Ambient temperature range	-30...50 °C
Explosion protection	absent
Housing material	?????????????

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
