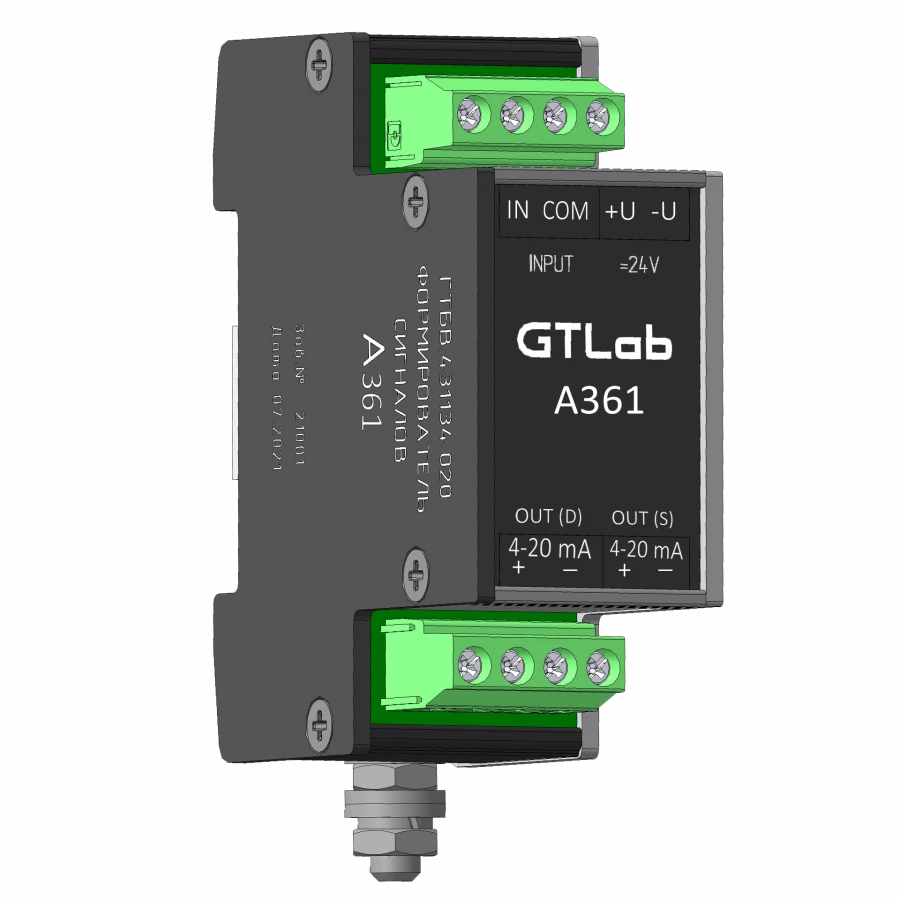

Signal conditioner A361.XX.XX.XX.XXX

Analog Signal Conditioners

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

Signal shaper in combination with the sensor forms a means of measuring vibration and movement of parts of machines and mechanisms. Current output 4-20 mA relative vibration displacement OUT(D); current output 4-20 mA static gap OUT(S); high temperature and time stability of characteristics; possibility of replacement of the same type of primary converters; transmission of the output current signal at a distance of up to 1000 m.

Specifications

Static gap measurement range 0,2 ... 2.2 mm (for 5 mm coil) 0.3 ... 3,3 mm (for 8 mm coil)

Swings of measured relative vibration displacement 0,125; 0,25; 0,5 mm (for 5 mm coil) 0,25; 0,5; 1 mm (for 8 mm coil)

Conversion factors for relative displacement sweep measurement with 4-20 mA DC output 128; 64; 32 µA/?m (for 5 mm coil) 64; 32; 16 µA/?m (for 8 mm coil)

Conversion factors for static gap measurement with 4-20 mA DC output 8 µA/µm (for 5 mm coil) 5.3 mA/µm (for 8 mm coil)

Setting error of conversion coefficients ± 5%

Nonlinearity of the amplitude response ± 5%

Operating frequency range (frequency response unevenness ± 1 dB) 2 ... 10 000 Hz

Operating temperature range -30 ... 65 °C

Measurement error in the operating temperature range ± 2%

Operating temperature range of the sensor -40 ... 150 °C

Measurement error in the operating temperature range with sensor ± 10%

Power supply voltage + (18 ... 30) ?

Consumption current < 35 mA

Level of RMS of intrinsic noise ? 3 µm (for 5 mm coil) ? 4 µm (for 8 mm coil)

Input/output connectors terminal blocks

Sensor cable length 0,5 ... 18 ?

Weight 150 ?

DIN rail mounting Armoured glass

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
