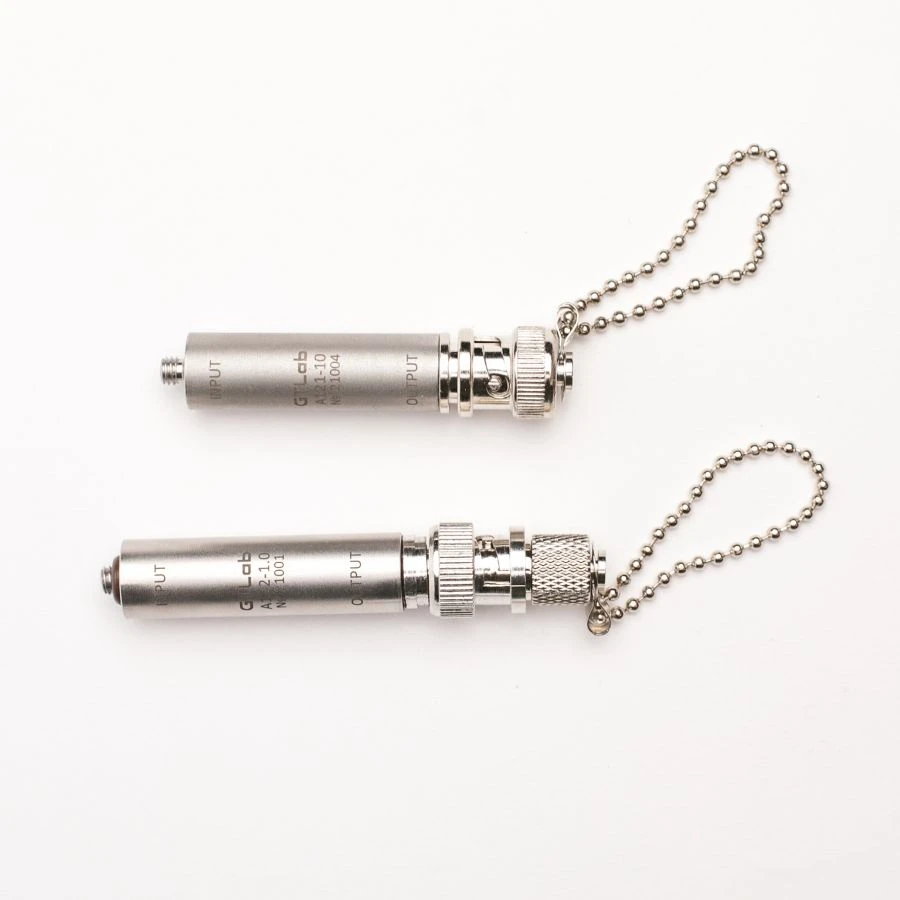

Signal conditioner A121-XX

Analog Signal Conditioners

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

Converting signal conditioners are designed to convert a charge output sensor signal to an IEPE standard voltage. In addition, the signal conditioner matches the high output resistance of the sensor to the input resistance of the IEPE measuring devices.

Specifications

Maximum input charge (peak) ± 50,000 pKl | ± 25,000 pKl | ± 10,000 pKl | ± 5,000 pKl | ± 2,500 pKl | ± 1,000 pKl | ± 500 pKl | ± 250 pKl | ± 100 pKl

Operating frequency range at minus 1 dB level 0.5 ... 100 000 Hz | 0.5 ... 50 000 Hz | 0.5 ... 30 000 Hz

Natural noise RMS level in the range 1 .... 22 000 Hz 30-10-6pKl/pF | 5-10-6pKl/pF | 2-10-6pKl/pF

Tolerance limits of the basic relative error of the charge conversion coefficient at a frequency of 1 kHz ± 2 %

Output impedance < 500 ohms

Maximum amplitude of output voltage ± 5 ?

Nonlinear distortion factor < 5 %

Tolerance limits of additional relative error of the charge conversion coefficient in the operating temperature range ± 2 %

Power supply: ? voltage ? current +(18 ... 30)? 2 ... 20 mA

DC output voltage level 8 ... 13 ?

Weight 19 ?

Operating temperature range -40 ... +85 °?

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
