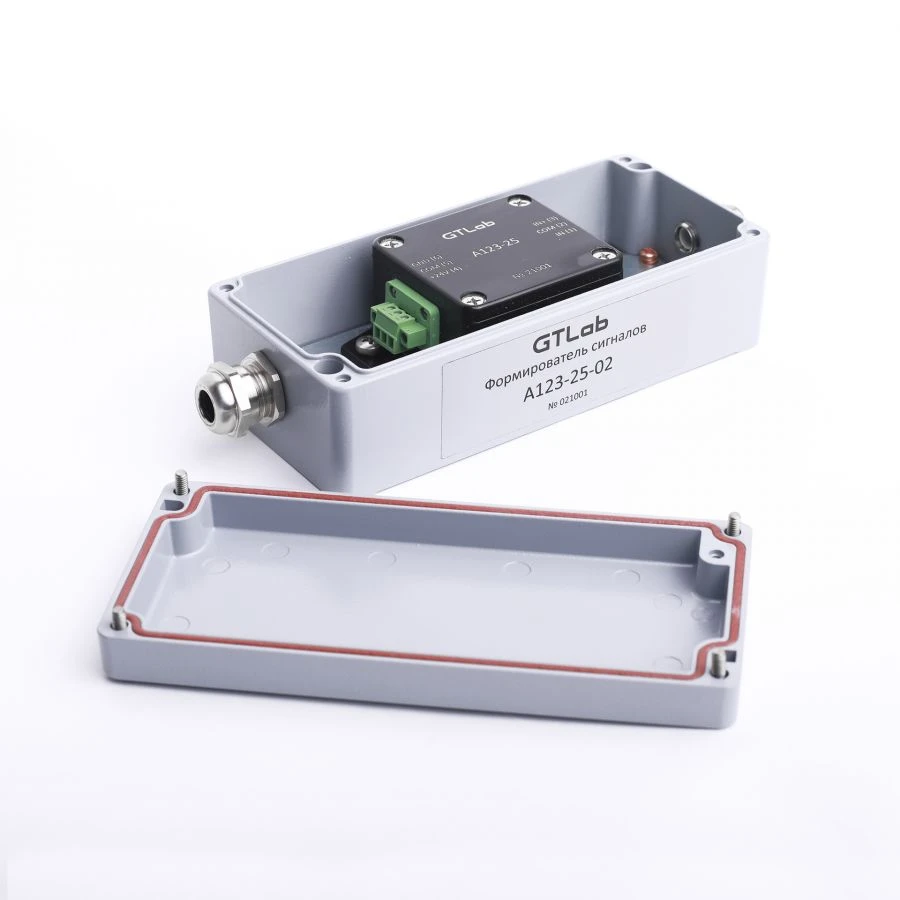

Signal conditioner A123-25-02

Analog Signal Conditioners

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

Converting signal conditioner designed for converting charge into output current signal

Specifications

Maximum input charge (peak) 200 pCal

Operating frequency range (-3 dB ACR non-uniformity) 2 ... 20 000 Hz

Conversion factor to current signal 25 µA/pKL

Maximum output current amplitude ± 5 mA

DC output current level 12 ± 0.5 mA

Measurement error in the operating temperature range -40 ... +85 °?

Power supply voltage 15 ... 25 ?

Consumption current < 25 mA

Time to establish operating mode < 4 ?

Input/output connectors terminal block

Housing material Aluminum alloy

Weight 800 ?

Feature explosion-proof enclosure

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
