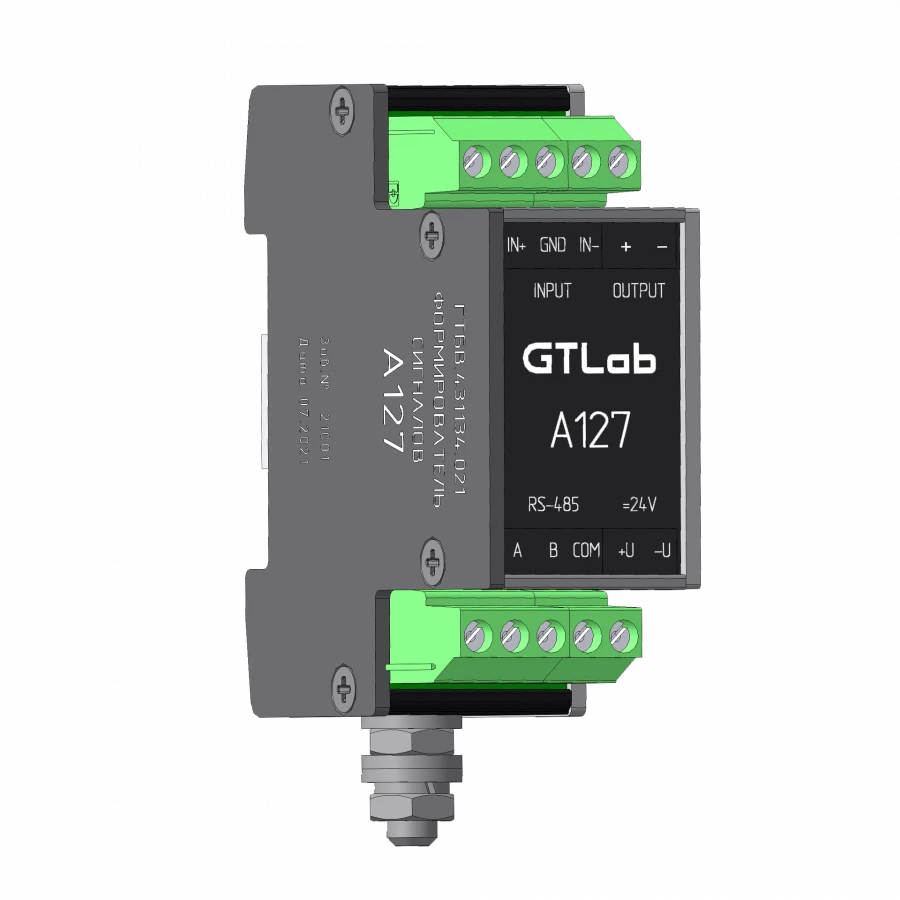

Signal conditioner A127

Analog Signal Conditioners

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

Signal conditioner is designed for conversion of high impedance signal of piezoelectric converter
(vibration transducer, force sensor, etc.) into a low impedance voltage signal.
Conversion of charge into a vibration acceleration output signal; symmetrical (balanced)
input and output; control of test oscillator switching on and conversion ratio switching via RS-485; galvanically isolated from, common, power supply
and RS485; performance stability and reliability in operation; low
noise level.

Specifications

Charge conversion factor (± 2 %) 1; 2; 5; 10; 20; 50; 50; 100; 200; 500 mV/pKl

Operating frequency range (-3 dB ACR non-uniformity) 2 ... 20 000 Hz

Maximum input charge (peak) ± 10,000 pCal

Maximum output voltage amplitude ± 10 ?

Level of RMS of intrinsic noise < 20-10-6 pKl/pF

Output Impedance < 100 ohms

Amplitude of test signal (± 2.5 %) 100 mV

Test generator signal frequency 16 ± 0.5 Hz

Data exchange in the information system RS485

Measurement error in the operating temperature range ± 2 %

Operating temperature range -40 ... +85 °?

Power supply voltage +(18 ... 30) ?

Consumption current ? 50 mA

Input/output connector terminal block

Housing material Aluminum alloy

Weight 150 ?

DIN rail mounting Armoured glass

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
