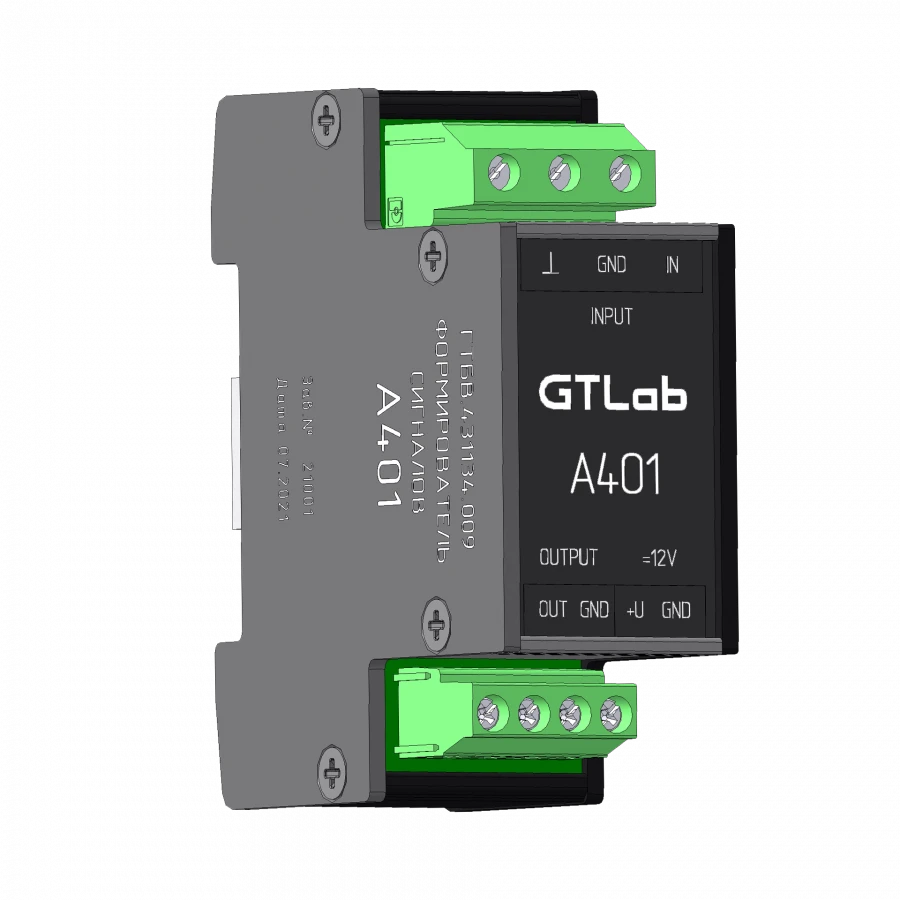

Signal conditioner A401
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Description
Signal shaper for receiving and amplifying to normalised values the signals of acoustic emission transducers with built-in electronics. Allows to use long communication lines from the transducer to the amplifier (up to 10m.); work on coaxial 75 Ohm line up to 100m. long; small intrinsic noise.
Specifications
Gain factor
20 ± 0.25 dB
Operating frequency range (-3 dB ACR non-uniformity)
Operating frequency range (ACF non-uniformity -3 dB)
Maximum output voltage amplitude
± 1 ?
Nonlinear distortion factor
< 5 %
Level of RMS eigenvalue noise reduced to the input
< 5 µV
Output Impedance
75 ± 0.5 ohms
Measurement error in the operating temperature range
± 2 %
Operating temperature range
-40 ... +85 °?
Sensor supply voltage
9 ± 0,5 ?
Power supply voltage
12 ± 1 ?
Consumption current
< 25 mA
Input/output connectors
screw terminals
Screw terminal blocks
Aluminum alloy
Weight
150 ?
DIN rail mounting
Armoured glass
Explosion protection
Armoured glass
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
