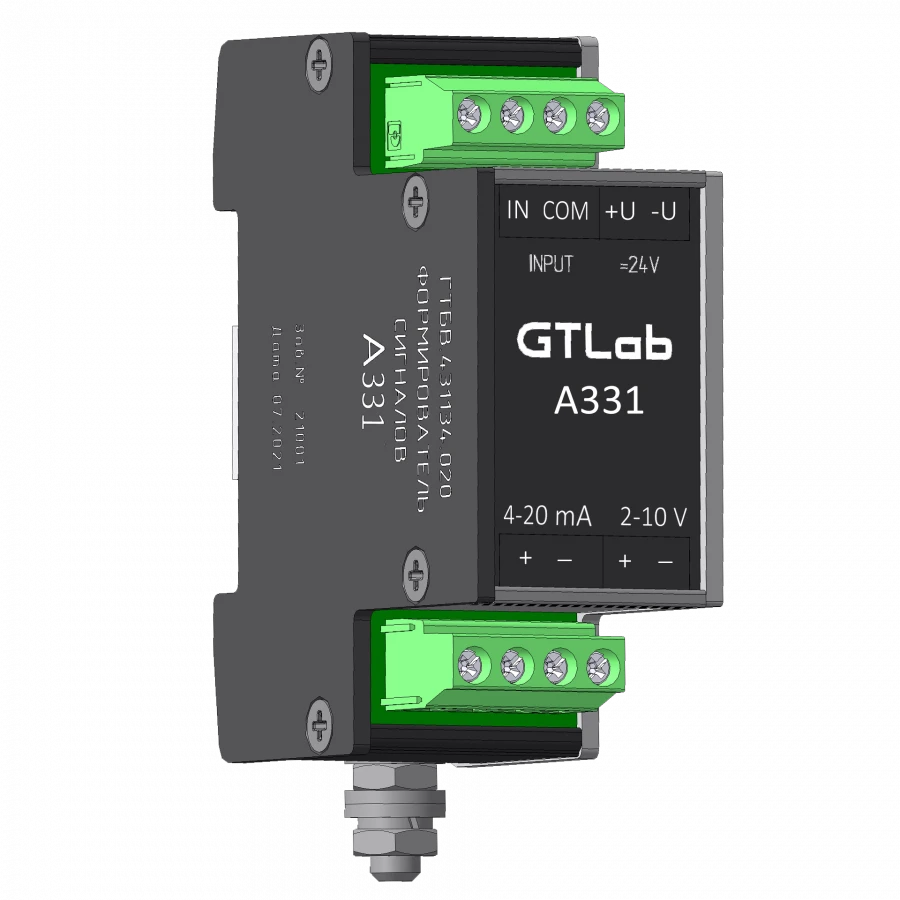

Signal conditioner A331.XX.XX

Analog Signal Conditioners

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

The signal conditioner combined with the sensor forms a means of measuring vibration and movement of machine parts and mechanisms. Analogue current 4-20 mA and voltage 2-10 V outputs; high temperature and time stability of characteristics; possibility of replacement of the same type of primary converters; transmission of the output current signal at a distance of up to 1000 m.

Technical Specifications

Displacement measuring range	0,2 ... 2.2 mm (for 5 mm coil) 0.3 ... 3,3 mm (for 8 mm coil)
Conversion factors for relative displacement measurement with current output	8 ?A/?m (for 5 mm coil) 5.3 ?A/?m (for 5.3 ?A/?m)
Conversion factors for relative displacement measurement with voltage output	4 mV/µm (for 5 mm coil) 2.7 mV/µm (for 8 mm coil)
Setting error of conversion coefficients	± 5%
Nonlinearity of the amplitude response	± 5%
Operating frequency range (frequency response unevenness ± 1 dB)	0 ... 10 000 Hz
Operating temperature range	-30 ... 65 °C
Measurement error in the operating temperature range	± 2%
Operating temperature range of the sensor	-40 ... 150 °C
Measurement error in the operating temperature range with sensor	± 10%
Power supply voltage	+ (18 ... 30) ?
Consumption current	< 35 mA
Level of RMS of intrinsic noise	? 3 µm (for 5 mm coil) ? 4 µm (for 8 mm coil)
Input/output connectors	terminal blocks
Sensor cable length	0,5 ... 18 ?
Weight	150 ?
DIN rail mounting	Armoured glass

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
