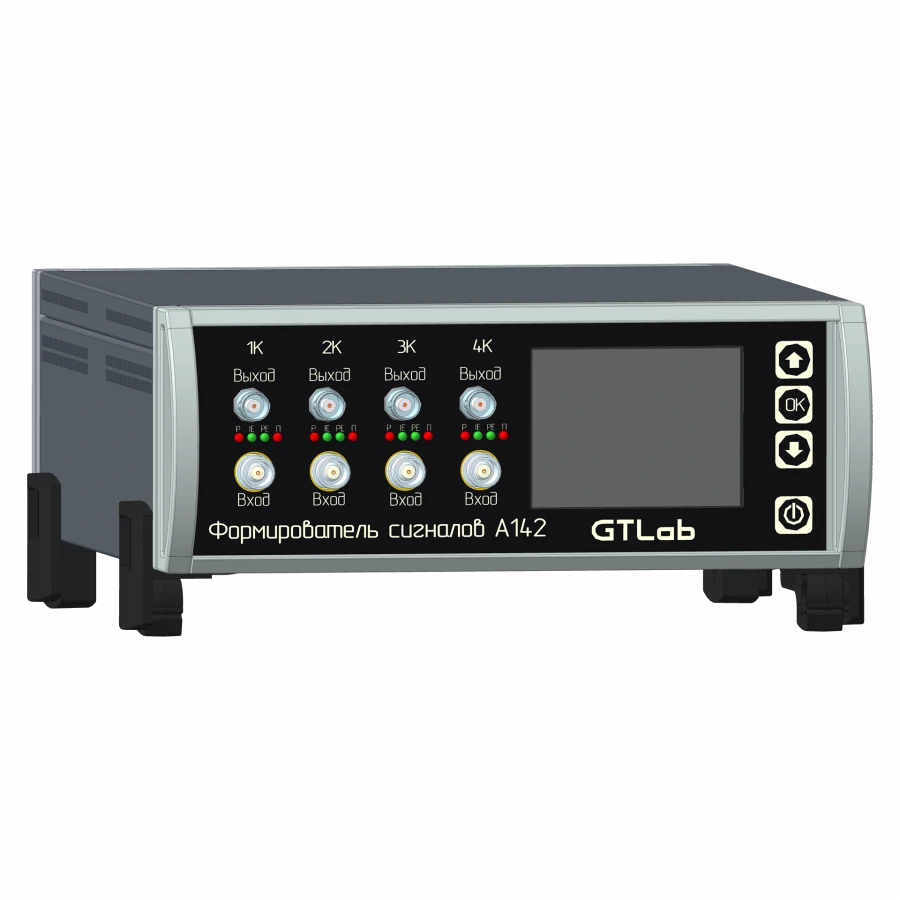

Signal conditioner A142

Analog Signal Conditioners

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

Signal shaper designed to measure prameters of dynamic processes in the mode of charge amplifier/amplifier.
voltages. Normalisation mode by the conversion factor of sensors; overload indication mode; low noise level; galvanically isolated inputs; built-in display;
Signal conditioners control of operating modes via Ethermet.

Specifications

Types of transducers supported IEPE; PE

Maximum input voltage (IEPE) ± 10 B

Maximum input charge (peak) (PE) 10^5 pCal

Range of sensor conversion coefficients 10^-12... 10^3 V/U (in voltage (IEPE) 10^-12... 103 pKl/U (in charge (PE))

Operating frequency range 0,3 ... 100,000 Hz

Input impedance of the recorder > 10^9 ohms

Output Impedance < 100 ohms

Maximum output voltage amplitude ± 10 ?

Voltage intrinsic noise RMS level ? 20 µV

Level of RMS of intrinsic noise by charge ? 20-10^-6 pKl/pF

Supply voltage for IEPE sensors +24 ± 2 ?

Supply current of IEPE sensors +5.7 ±1.2 mA

Voltage gain factor, (+0,5%) 1; 2; 5; 10; 20; 50; 100

Charge conversion factor, (+0.5%) (PE) 0.1; 0.2; 0.5; 10; 20; 50; 100 mV/pKl

Coefficient of influence of ambient temperature ? 0,025 %°?

VHF with decay of frequency response ? 80 dB/decade, at -1 dB level 0,3; 1; 2; 10

VLF with frequency response ? 80 dB/decade, at -1 dB level 0.2; 0.5; 10; 20; 50; 100 kHz

Power supply voltage 12 ± 2 ?

Consumption current ? 1 ?

Input connector TNC

Output connector BNC

Connectors for power supply connection Сетевой адаптер

Weight 3300 ?

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
