Available for Import

Radar indicator for control of ice conditions "Ice Vision", 2nd edition

Radar Equipment

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

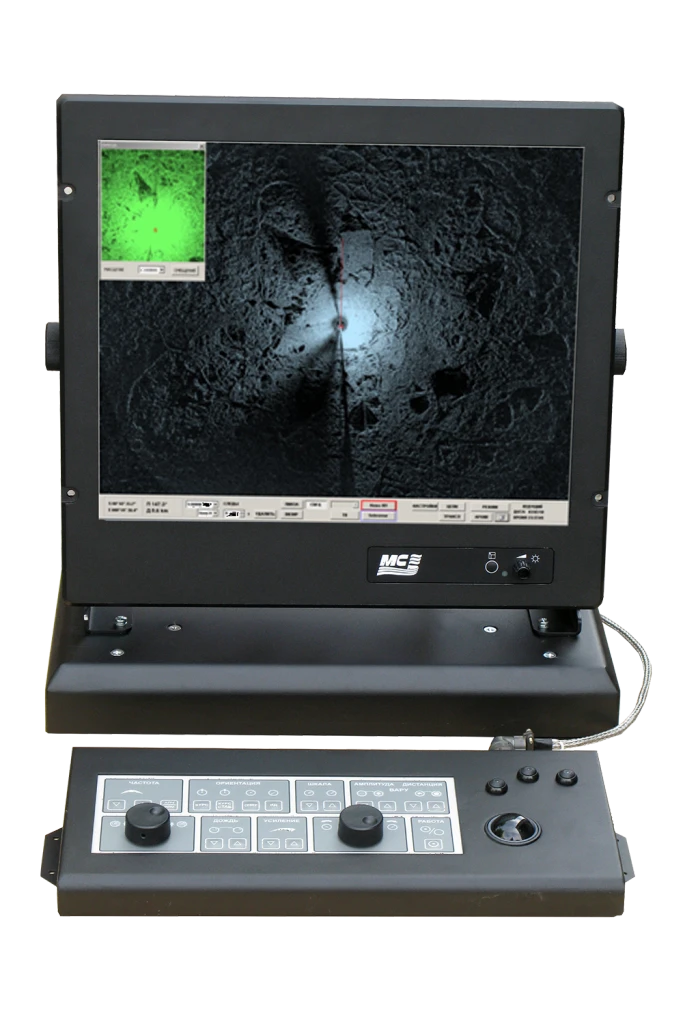

The radiolocation indicator for ice situation control "Ice Vision" is connected to standard ship and/or shore radars and is designed for use on icebreakers, transport, military and special vessels, floating and stationary objects (platforms, marine terminals, observation stations and posts, etc.) operating in polar and freezing waters as a navigational aid in planning and carrying out navigation in ice conditions and improving navigation safety. "Ice Vision" provides high quality visualisation of ice conditions in the area of the ship's radar coverage by improving the quality, clarity and detail of the radar image and offers enhanced navigation capabilities of the vessel for laying optimal routes when sailing in difficult ice conditions. The received image is displayed on the monitor in real time.

Technical Specifications

Number of simultaneously escorted targets, not less	1...99 pc
Completeness	Main unit (monoblock with 19" LCD monitor); Control panel; Operating system; Special software MKBT.00311-02; Set of ED; Set of mounting parts
ADC clock frequency	40
Number of input video quantization levels	Polyvinyl chloride plasticate, halogen-free composition
Number of distance counts	4096
Number of angular counts	4096
Radar antenna rotation speed	30
Video signal amplitude	5 V
Video polarity	any
Amplitude of sync pulses	2.5...25 V
Polarity of sync pulses	any
Video input resistance	50/75 or 1000
Power supply voltage	220 V
Power consumption	No more than 300
Monitor type	Liquid crystal
Monitor diagonal	19
Form factor	Marine computer monoblock with 19" LCD monitor
Control panel	Surface-mounted remote control KUFB.468313.008 or recessed remote control KUFB.468313.008-01

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
