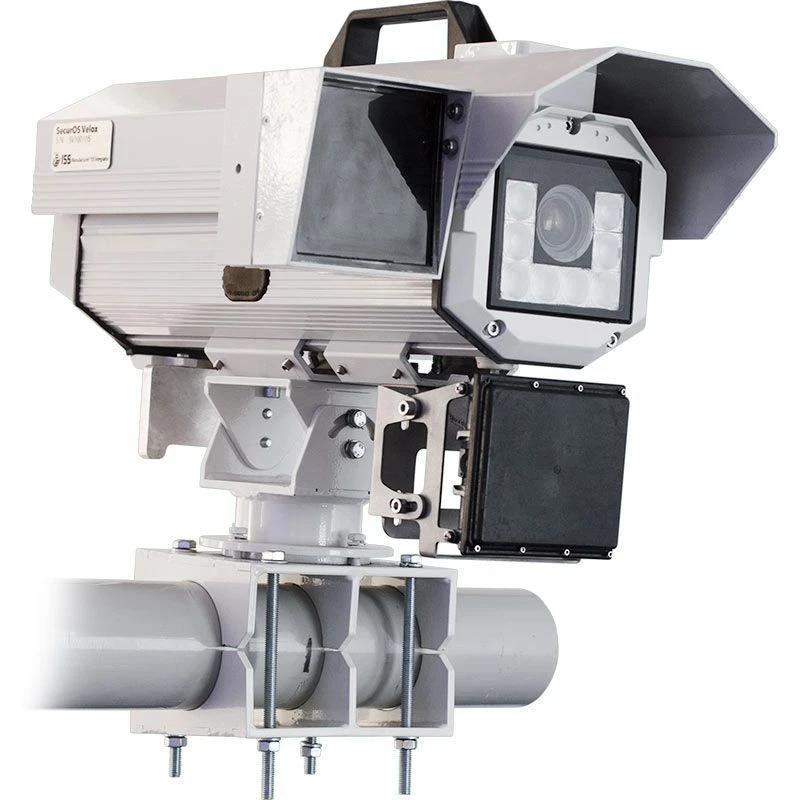

Hardware-software complex "TRAFIK-SCANNER-SM2".

Radar Equipment

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

The hardware-software complex "TRAFFIC-SCANER-SM2" LSFR.201219.001 (hereinafter - COMPLEX) is designed for application on the street-road network of cities, settlements and motorways of all types for the purpose of photo-video fixation of traffic violations, including:
-exceeding the set speed in the control zone/road section;
- driving in a prohibited direction (reversing);
- driving in the oncoming traffic lane;
- driving in a public transport lane;
-driving on pavements;
-driving on the side of the road;
- not wearing seat belts.
COMPLEX allows to solve the following tasks:
-registration of all vehicles moving through the control zone with or without violations;
-automatic generation of evidence files on the facts of violations;
-temporary storage of the received data;
-transmission of information through standard ports;
-protection of data from unauthorised access.

Specifications

Operating temperature range -40 … +45 °C

Relative humidity 98 %

Atmospheric pressure 86 to 106.7

Average power consumption of the base set 110 W

Supply voltage for mobile complex B1/B8 2100/900 MHz V

Supply voltage for stationary complex 220 V

Weight of the basic set 14 kg

Absolute error of setting time marks in relation to UTC (SU) ±1

Parameters of monitored roadway section 26 m

Parameters of controlled number of strips 6

Degree of protection of equipment according to GOST 14254-96 ip65

Range of vehicle speeds 20-250

Permissible limit of absolute error of speed measurement ± 2

Mutual reciprocal motion operation Armoured glass

Individual speed limit for each lane Armoured glass

Presence of electronic signature of output data Armoured glass

Synchronisation of time stamps used to generate time stamps on violation frames and control time intervals Armoured glass

Tracking targets (TCs) simultaneously 32 pc

Highlighting of the offender's vehicle on the image (in the flow of other vehicles) Armoured glass

Integration with any violation data processing centre Armoured glass

Possibility to install an additional external light source Armoured glass

Function of self-diagnostics of the main units operability Armoured glass

Built-in date/time correction without the need to communicate with external NTP servers Armoured glass

Possibility of access to the complex via wireless communication channel Armoured glass

Protection of data from unauthorized access Armoured glass

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
