Repeynik portable radar station

Radar Equipment

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

NRLS "Repeynik" is designed for detection and tracking of UAVs in the scanning sector of 360 degrees, at a distance of up to 15 km, altitude up to 5 km and speed up to 200 km/h. Compact size and modular division into two blocks of 15 and 10.5 kg provide the possibility of attachment to special equipment and stealthy movement of the combat crew. Autonomy and five-minute deployment ensure the effectiveness of work during assault or reconnaissance activities in the enemy territory, as well as the efficiency of guarding groups on the lines of contact and protected objects. Autonomous operation of the station is provided by a compact power source for 8 hours. The narrow scanning beam ensures the station's stealthy operation from electronic reconnaissance (ERR) and reduces the risk of being hit by anti-radar missiles. Elements of the station can be painted with different types of camouflage, including the use of coatings with infrared emission.

Specifications

Angle of place setting adjustment range in increments of 10 degrees 0...40

Instrumental detection range 15000 m

Azimuth field of view 360

Radiated power 2 W

Weight of movable block 10.5 kg

Weight of stationary unit of the station 15 kg

Power supply voltage 220 V

Place angle 20

Speed of full azimuth view 2.5

Frequency range 9.2...9.5

Number of simultaneously escorted targets, not less Polyvinyl chloride plasticate, halogen-free composition pc

Rotational speed of the movable block 24

Integration with suppression systems (REB) Armoured glass

Possibility of networking several stations Armoured glass

Data exchange, issuance of target forms and target designations Ethernet (RJ-45)

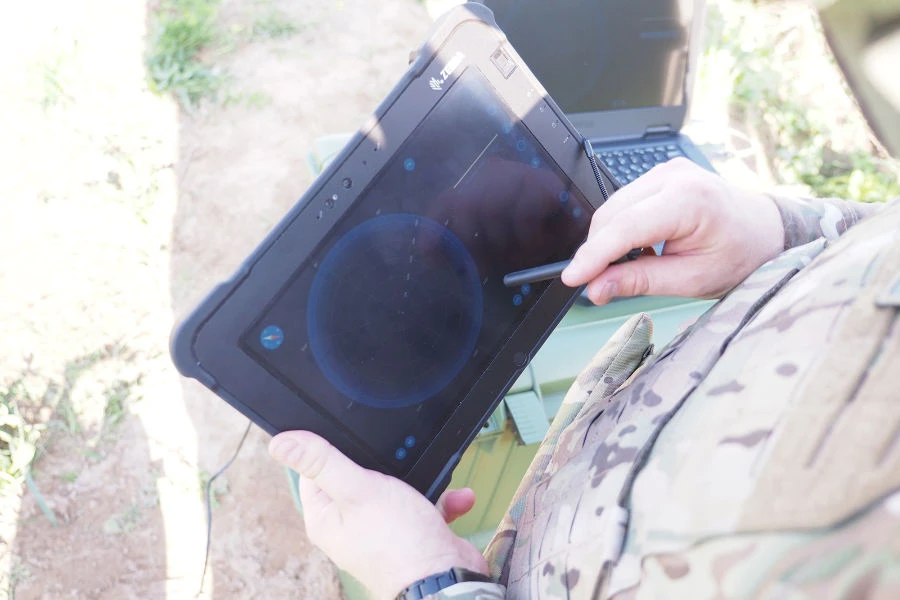

Possible extension of the basic equipment Camouflage colouring or colouring with infrared mission, autonomous power supply kit (portable batteries), various electronic warfare (EW) modules, advanced operator's ARM (tablet or IP65 protected laptop), transport cases with decoys.

Basic equipment NRLS "Repeinik", telescopic tripod, standard colour (olive/grey/white), standard operator's workstation (laptop), special equipment for carrying the station by one fighter, training of one operator to work with NRLS (on the territory of the enterprise).

Autonomous operation from one power source 8

Overall dimensions (L×W×H) 0,3×0,46×0,65 m

Power consumption 65 W

Operating temperature range -40...50 °C

Station deployment time 5

Range resolution 2.5 m

Azimuth resolution 1.2

Carrier frequency/operating wavelength 9.455

Directional width 3

Type of coordinate system used to issue the target designation Polar

Composition of information to be issued when issuing a target designation Azimuth, estimated altitude, distance to object

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
