Coastal radar station "Neva-B", art. 2

Radar Equipment

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Available Models

Coastal radar station "Neva-B", type 4

Description

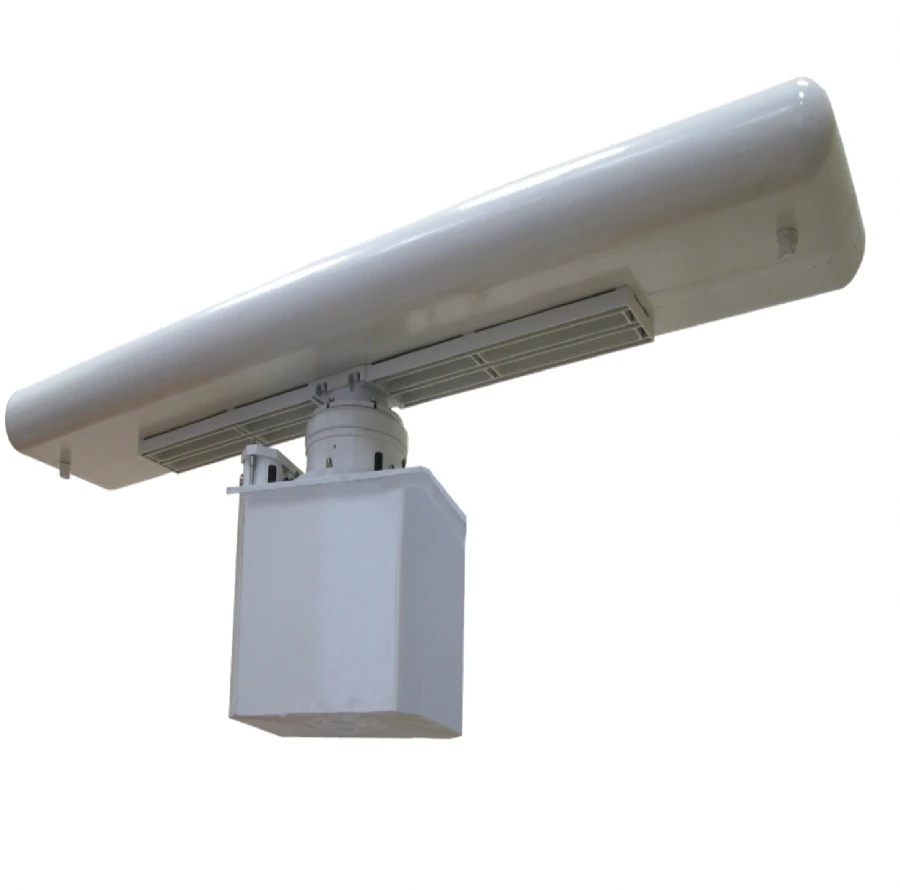

The coastal radar station (BRLS) "Neva-B" KUFV.461512.001-01 version 2 of millimetre (Ka) wave range is designed for automated monitoring of water areas and territories of large area or length, adjacent to especially important objects, strategic objects, especially dangerous objects. It is used in security engineering complexes as a means of early detection and tracking of surface and ground targets, issuing target designation for optical-electronic surveillance equipment. Characteristics of the Neva-B radar system allow it to "work" on ultra-small targets and targets such as "swimmer's head", "man" in the near zone.

Specifications

Number of simultaneously escorted targets, not less 100 pc

Pulse power of the transmitter, not less than B1/B8 2100/900 MHz kW

DN width in azimuthal plane, not more than 0.26

DN width in the angular plane, not more than 7

Distance resolution, not worse than 15 m

Azimuth resolution, not worse than 0.5

Antenna rotation speed 10...60

Power supply voltage 220 V

Weight of UAPP 132 kg

Completeness Antenna receiving and transmitting unit (ARTU); Electronic switchboard; Service indicator; Set of spare parts, tools and accessories (single); Set of assembly parts; Set of operation documentation; Set of packing.

Frequency range 33400...34200

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
