R65 Type Switch for Curves with Radius 600m, Model 2759.00.000

Available for Import

R65 Type Switch for Curved Railways - Efficient Track Switching Solution

Wide Gauge Track Switches

Manufacturer: NSZ OJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

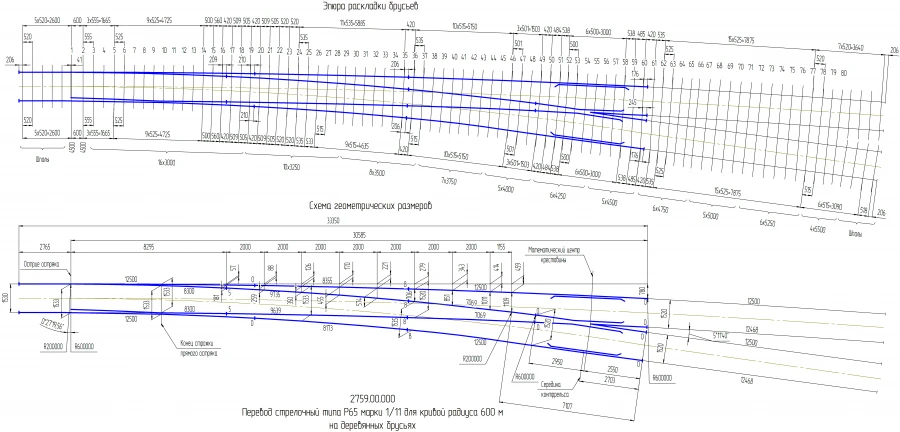

Arrowhead type P65 grade 1/11 for 600 m radius curve of Project 2759.00.000-01

Description

Designed for transfer of rolling stock from one track to another. It is used in curvilinear sections of railway lines. Design features: transfer: separate fastening, terminals of PC type, pads with flanges; switches: rotary shackles with liner-overlay fastening of the root, connecting rods-adjustable, pads with pads on riveted connection; crosses: prefabricated with rail usoviki and cast core of high-manganese steel with liner-overlay end of the rear outreach, counter rail from angle SP850.

Specifications

Cross type by angle

Spicy

View

Single

Type of single transfer

Curved one-sided

Arrow design

With rotating sharps

Cross brand

1/11

Rail type

?65

View in the direction of a side or crossing track

Right

Cross type by construction

Team

Type of product according to PP RF 616

Track equipment and devices and their parts

Type of timber

wooden

Save Your Time

Share your requirements for a quick response!

Looking for

Quantity

Your mobile

Instant response in 15 minutes

Best wholesale prices guaranteed

Direct from manufacturer

Delivery & Payment

Shipping Terms

FOB Novorossiysk, Russia CIF Available to major ports worldwide EXW Manufacturer's facility, Russia

Delivery Time

Sea freight: 30-60 days (depending on destination) Air freight: 14-21 days (for urgent orders)

Payment Methods

Letter of Credit (L/C) Wire Transfer (T/T) Escrow Services
