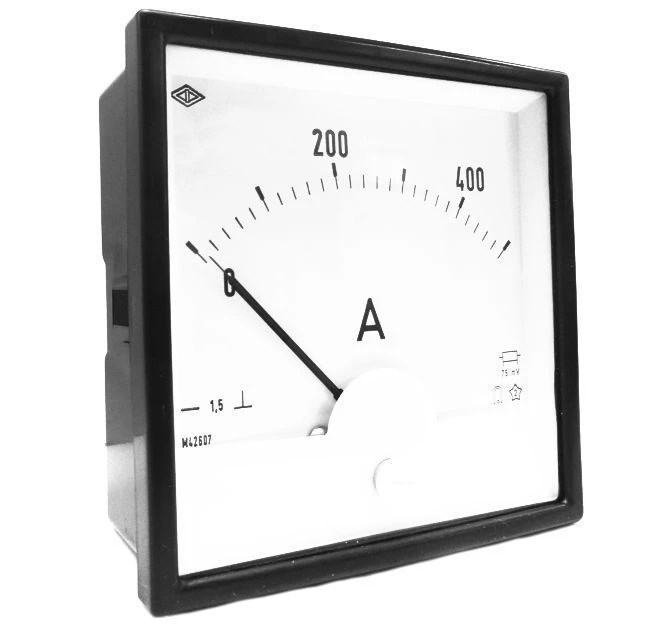

Panelboard microammeter, milliammeter, ammeter and voltmeter: version M42607
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Description
Devices M42607 are designed to measure current and voltage in DC electric circuits in various industries. The devices are installed in shields with square cutouts. Location of the measuring mechanism in these devices is central. The devices can be manufactured: with other measuring ranges and with scales calibrated in units of any physical quantities; with a zero mark at the edge or inside the measuring range. The dials and scales of the instruments are made according to Din 43802. The instruments are verified in accordance with the requirements of GOST 8.497-83. M42607 are included in the State Register of measuring instruments of the Russian Federation No. 68770-17. Interval of verification is 2 years.
Specifications
Dimensions of the front panel, mm
96x96
Panel cutout, mm
92x92
Scale length, mm, not less
76
Accuracy class
1,5; 2,5
Degree of protection IP
Dustproof IP50 (for devices M42607 with "Sea Register" acceptance - IP54)
Weight, kg, not more
0,2
Operating temperature range
-30...+50 °?
Current measuring range (direct connection)
1mA; 5mA; 10mA; 15mA; 30mA; 50mA; 100mA; 150mA; 300mA; 500mA; 600mA; 1A; 2A; 3A; 5A; 10A; 15A
Current measurement range (connection with 75 mV external shunt and a pair of 0.035 ohm calibrated wires)
20 A; 30 A; 50 A; 75 A; 100 A; 150 A; 200 A; 300 A; 400 A; 500 A; 750 A; 1 kA; 1.5 kA; 2 kA; 4 kA; 6 kA
Voltage measuring range (direct connection)
2V; 3V; 7.5V; 10V; 15V; 20V; 30V; 50V; 75V; 100V; 150V; 250V; 300V; 400V; 500V; 600V
Voltage measuring range (connection with separate additive resistor with nominal current 5 mA)
1 kV; 1.5 kV; 3 kV
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
