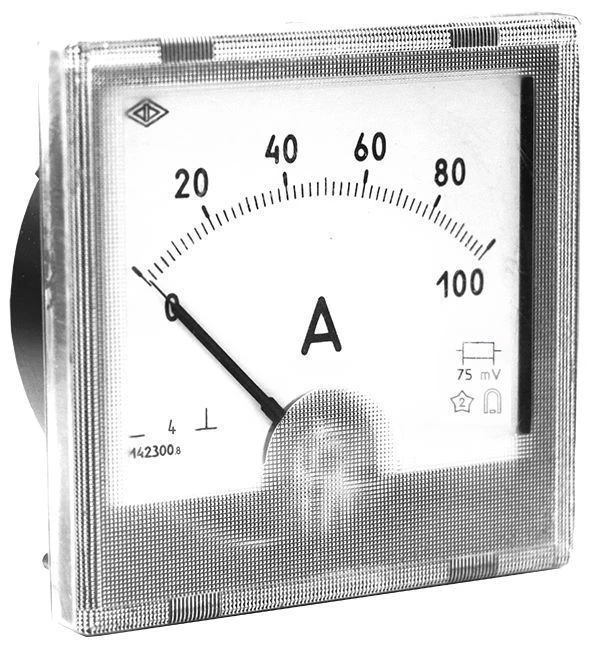

Microammeter, milliammeter, ammeter and panel voltmeter: version M42300.8

Panel Analog Measuring Instruments

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

Devices M42300.8 are designed to measure the current in chargers and other DC devices in various industries in temperate climates. The dials and scales of the devices are made in accordance with GOST 5365-83. M42300.8 are included in the State Register of measuring instruments of the Russian Federation. Interverification interval is 5 years.

Specifications

Dimensions of the front panel, mm 80x80

Panel cutout, mm Ø 77,5

Accuracy class 4,0

Degree of protection IP Dustproof IP50

Weight, kg, not more 0,2

Operating temperature range -30...+50 °?

Measuring range (connection with 75 mV external shunt and a pair of 0.035 ohm calibrated wires) A - 30; 50; 75; 100; 150; 300; 500; 750; kA - 1.5; 3

Scale length, mm, not less 60
