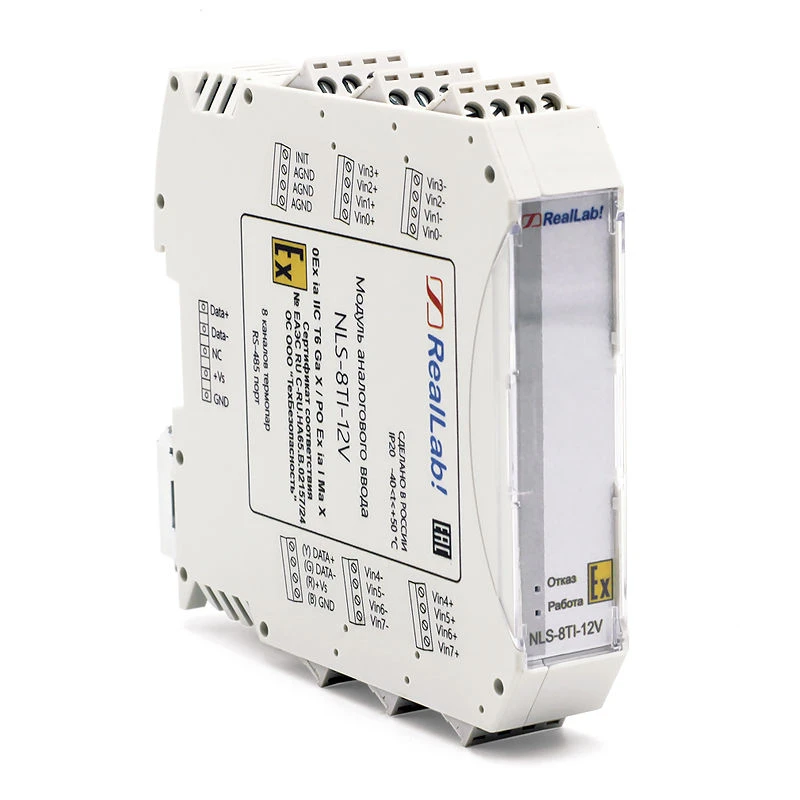

NLS-8TI-12V Intrinsically safe module of analogue input of thermocouple signals

Purpose: module of analogue input of thermocouple signals Explosion protection marking: 0Ex ia IIC T6 Ga X or PO Ex ia I Ma X Analogue input: 8 differential channels for analogue input of thermocouple signals type K J B L E or S R N T or voltage with software-settable ranges of 15 mV, 50 mV, 100 mV, 500 mV, 1 V, 2.5 V or current up to 20 mA Digit capacity: 16 digits Galvanic isolation: 2500 V Measurement error: basic measurement error is not worse than 0.1% Interference coefficient: the coefficient of attenuation of interference of the general type with a frequency of 50 Hz - not less than 100 dB Temperature: temperature range from -40 to +50 C Connection interface: RS-485, protocol Modbus RTU and DCON Power supply voltage: from 10 V to 13 V Power consumption: 0.72 W OKPD2 Code: 26.51.43.117 Dimensions (HxWxH): 109x22.5x113 mm Warranty: 18 months
