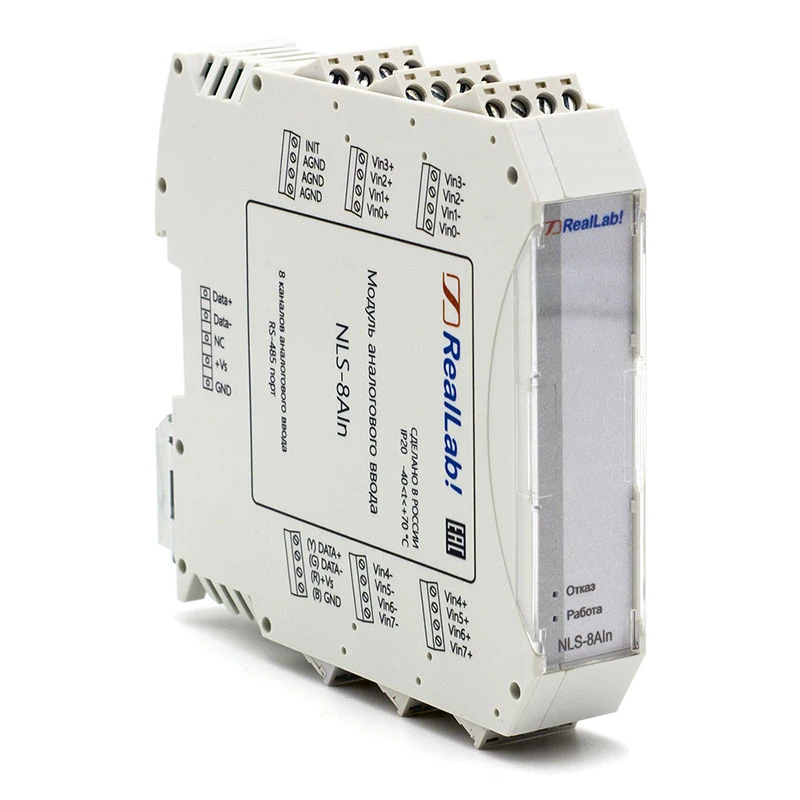

NLS-8AIn Universal analogue input module

Purpose: for voltage or current measurementConnection: 16 single or 8 differential analogue input channels with software-settable ranges of 150 mV, 500 mV, 1 V, 5 V, 10 V, 25 mA Measurement error: max 0.1 %Digit capacity: 16 digits (ADC)Measurement ranges: independent setting of measurement ranges for each channelAdC sampling rate: 10 Hz, 28 Hz (default), 200 HzSampling time per channel: (set by software) 100 ms, 35 ms (default), 5 msGalvanic isolation: galvanic isolation voltage 2500 VTemperature: -40 to +70 SI operating temperature rangeConnection interface: RS-485 interfaceProtocols: DCON and MODBUS RTUPower supply: 10 to 30 VPower consumption: not more than 0.6 WFixing: DIN-rail mounting ????2 code: 26.51.43.117Dimensions (H x W x D): 109x22.5x113 mmWarranty: 18 months
