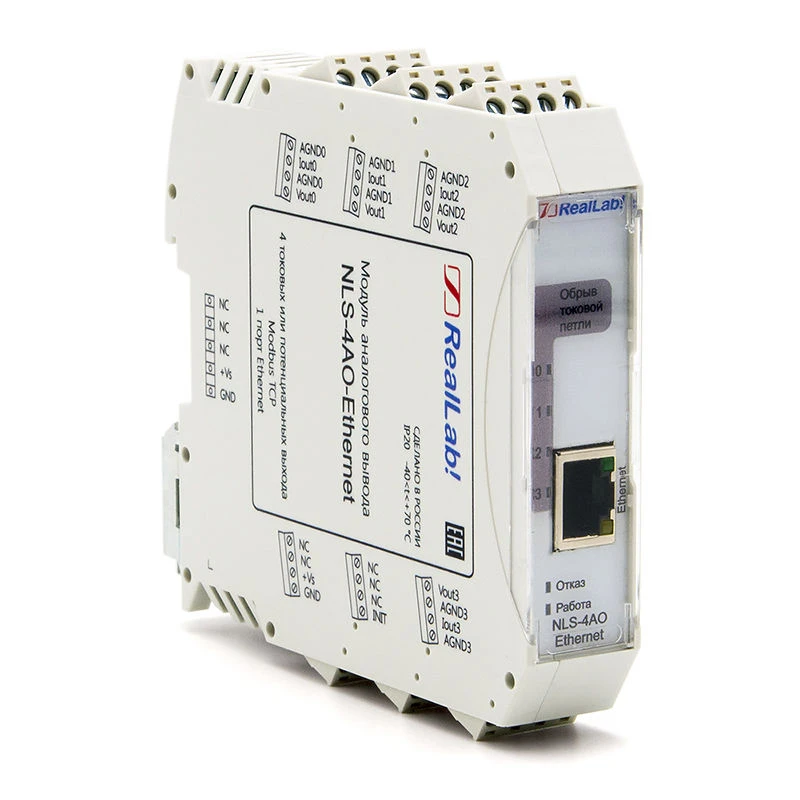

NLS-4AO-Ethernet Analogue output module

Purpose: analogue voltage or current outputConnection: 4 galvanically isolated channels of analogue current or voltage outputDigit capacity: 12 digits (DAC)Output types: 0-20 mA, 4-20 mA, 0-24 mA, 0-5 V, 5 V, 0-10 V, 10 VSetting error: not more than 0,1 %Programming range: programming range of the output signal slew rate 0... ...1024 V/s or 0......1024 V/s or 0...2048 mA/sGalvanic isolation: channel isolation of analogue outputs (2500 V),Ethernet (1500 V)Temperature: -40 to +70SInterface connection: 1 Ethernet portProtocol: Modbus TCP, DHCPEthernet speeds: 10BASE-T/100BASE-TX. Selectable automaticallyConfiguration: WEB-interface, Modbus TCPPower supply: from 10 to 30VPower consumption: not more than 2 / 3W (no load / with load)Design: slot construction, bus connector for power supplyMounting: on DIN-rail OKPD2 code: 26.51.43.117Dimensions (H x W x D): 109x22.5x113 mmWarranty: 18 months
