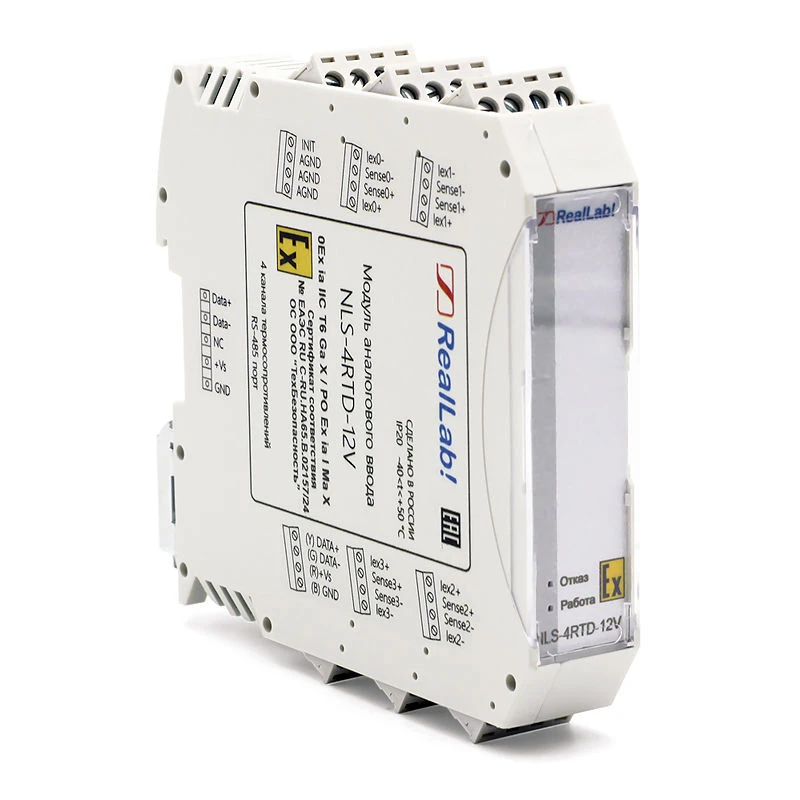

NLS-4RTD-12V Intrinsically safe module of analogue input of thermal resistance signals

Purpose: module of analogue input of thermoresistance signals Explosion protection marking: 0Ex ia IIC T6 Ga X or PO Ex ia I Ma X Analogue input: 4 differential channels of analogue input for thermoresistive transducers TCM, TSP, TCN Connection options: 4 sensors on 4, 3 or 2-wire connection scheme Digit capacity: 16 digits Galvanic isolation: 2500 V Measurement error: basic measurement error not worse than 0.2% Temperature: temperature range from -40 to +50 C Connection interface: RS-485, Modbus RTU and DCON protocol Power supply voltage: from 10 V to 13 V Power consumption: 0.6 W OKPD2 Code: 26.51.43.117 Dimensions (HxWxH): 109x22.5x113 mm Warranty: 18 months
