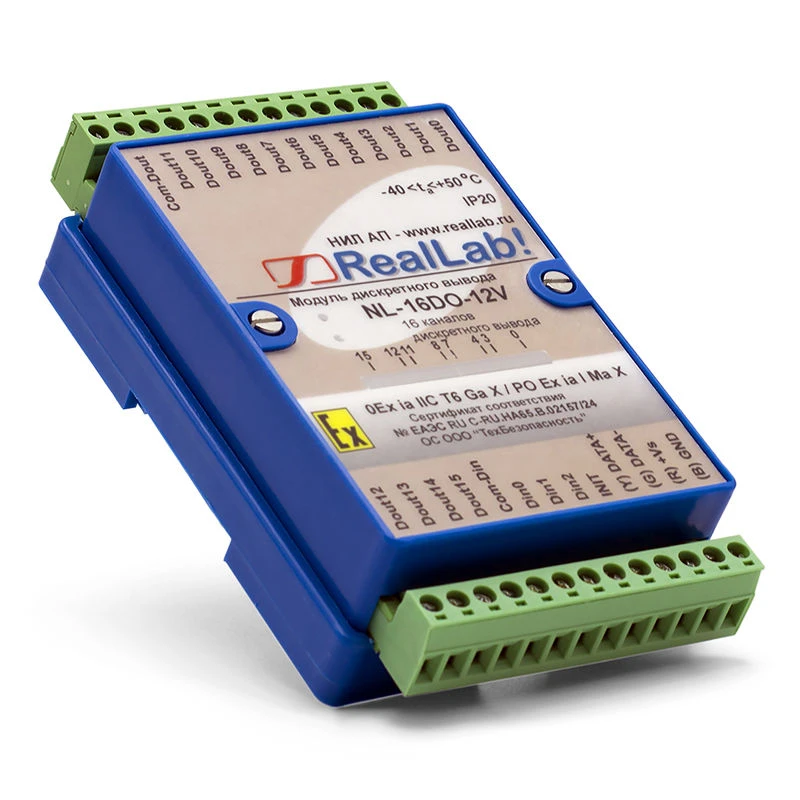

NL-16DO-12V Intrinsically safe digital output module
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Description
Purpose: discrete output module Explosion protection marking: 0Ex ia IIC T6 Ga X or PO Ex ia I Ma X Discrete input: 16 channels of discrete output with intelligent keys Overload protection: protection against overvoltage and current overload on input, output, interface, static electricity, etc. Galvanic isolation: galvanic isolation voltage 3.7 kV Temperature: temperature range from -40 to +50 C Connection interface: RS-485, Modbus RTU protocol and DCON Discrete input: 3 isolated discrete inputs Supply voltage: from 10 V to 13 V Power consumption: 0.5 W OKPD2 Code: 26.51.43.117 Dimensions (HxWxG): 123x76x33 mm Warranty: 18 months
Specifications
Power consumption
0.5 W
Operating temperature range
-40...50 °C
Dimensions (WxWxH)
123x76x33 mm
Nutrition
10...13 V
