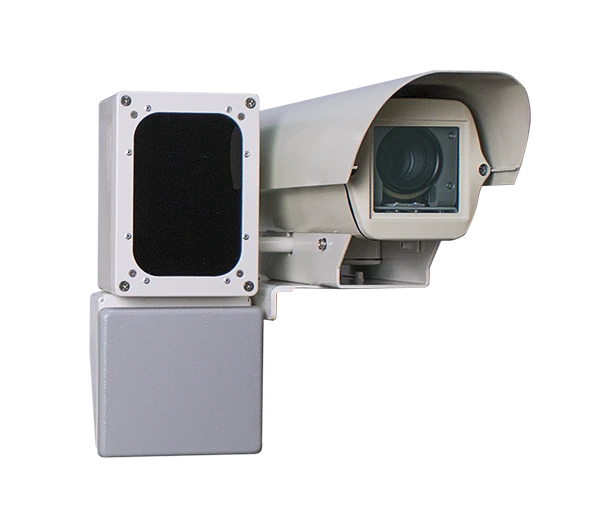

Measuring complex with video fixation "Kordon-Cross"
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Description
The complexes are designed to control and detect violations of traffic rules in terms of violations of the requirements for the placement of vehicles on the lanes and the movement of vehicles in the intersection areas. It is also possible to measure the speed of vehicles in the control zone.
Complexes carry out automatic measurement of current values of time, with simultaneous video fixation and saving of the received information.
Complexes remotely (without galvanic connection) determine and record the phase of traffic lights with the help of a survey camera included in the complex.
The complexes operate in fully automatic mode, control the movement of vehicles on all lanes in the controlled area. The complexes contain modules for receiving navigation signals, with the help of which the device time is linked to the UTC(SU) scale.
The complexes provide round-the-clock automatic recognition of state registration marks.
Complexes carry out automatic measurement of current values of time, with simultaneous video fixation and saving of the received information.
Complexes remotely (without galvanic connection) determine and record the phase of traffic lights with the help of a survey camera included in the complex.
The complexes operate in fully automatic mode, control the movement of vehicles on all lanes in the controlled area. The complexes contain modules for receiving navigation signals, with the help of which the device time is linked to the UTC(SU) scale.
The complexes provide round-the-clock automatic recognition of state registration marks.
Specifications
Type of product according to PP RF 616
Instruments and other instruments for measurement, control and testing
Limits of allowable absolute error of time synchronization of the complex with the UTC national coordinated time scale (S
5
Tolerance limits of the angle measurement error between the sensor axis and the direction to the target within the control area
±2°
Limits of permissible error of measuring the distance from the stop line to the vehicle in the range of distances ±5 m
0.3 m
Operating frequency of radiation
24050...24250
Measured speed range
2...300
Limits of permissible absolute error of velocity measurements
1
Type of product according to PP RF 616
Instruments and other instruments for measurement, control and testing
