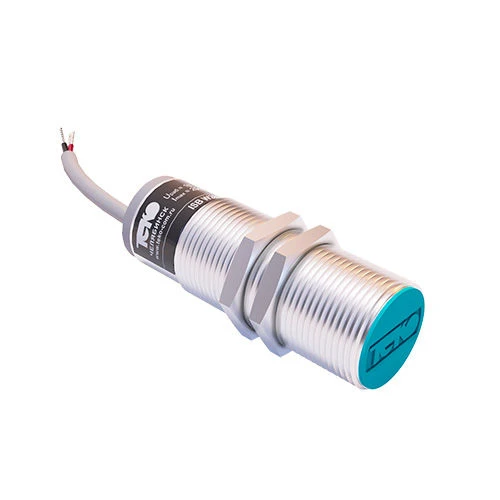

Proximity switch ISB A4A8-31P-5F-LZT1-C-P-5

Measurement and Control Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

The inductive contactless switch (sensor) is designed for use in motor transport. The switch is designed to meet the requirements of GOST 28751-90 "Electrical equipment of motor vehicles. Electromagnetic compatibility. Conductive interference in power supply circuits. Requirements and test methods". Principle of action: When approaching to the sensitive surface of the sensor of the object of influence from any metal there is a damping of the electromagnetic field and a decrease in the amplitude of oscillations of the generator, triggers a threshold device (trigger) and switches the electronic key of the sensor, which performs switching of electrical circuits.

Specifications

Contact type Normally open (NO)

Operating current, Irab. "400 mA

Operating clearance (Steel 35) 0...4 mm

Operating temperature range -45...60 °C

Rated clearance (Steel 35) 5 mm

Supply voltage ripple factor "67% Interference protected

Triggering indication Got it

Degree of protection according to GOST 14254-96 IP68

Comprehensive protection Got it

Connection / Connection Cable 3x1mm2; L=5m

Switching frequency, Fmax 600

Voltage drop at Irab., Ud "2,5?

Supply voltage, Ub. 10...30 V

Format, mm M18x1x50

Degree of rigidity of interference impact according to GOST 28751-90 3, class A

Housing material D16T

Mounting method Built-in

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
