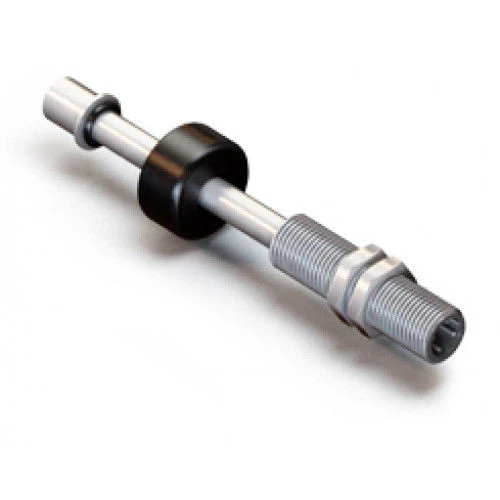

Liquid level sensor DUG2-15-1-1-S4

The level sensor DUG2-15-1-S4 is designed to control the level of liquid (75O kg/m) and control actuators. Sensors are designed for operation in explosion-proof environment, not containing aggressive liquids, gases and vapours in concentrations leading to corrosion of metals. By the method of protection against electric shock the sensors correspond to class I according to GOST R IEC 536. The sensor provides switching of reed contacts at liquid level below or equal to the controlled level. It is possible to change the controlled liquid level relative to the sensor mounting plane, as well as adjusting the level depending on the density of the liquid by shifting the fixing nuts within +-15 mm.
