Hardware-software complexes of automatic weight and gauge control "Bizman 7" modification Bizman 7/T-2-V

Measurement and Control Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

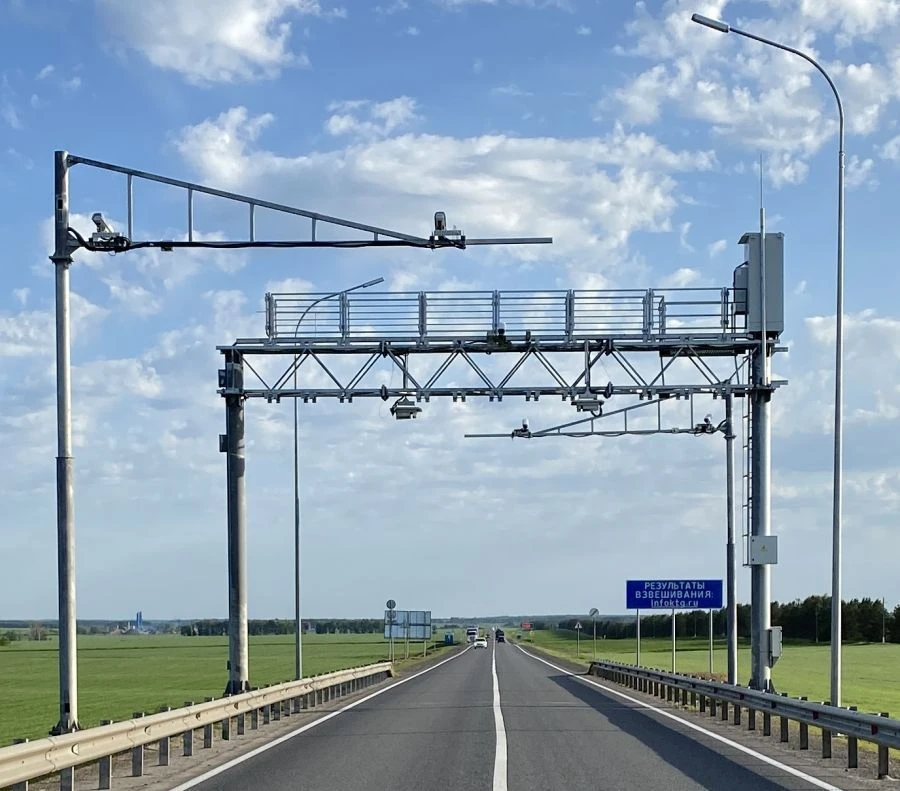

Bizman 7 complexes are special technical means operating in automatic mode and having the functions of measuring weight and dimensional parameters of the vehicle, as well as photo and video recording functions to ensure the fixation of administrative offences.
The complex has a modular architecture and consists of a set of weight-measuring (force-receiving) modules; a module for measuring overall dimensions; a module for photo-video fixation and recognition of GRZ with a GLONASS/GPS receiver; a processing and control module; a telecommunication cabinet with electronic equipment; a data transmission device and special software. The complexes can be additionally equipped with vehicle detection indicators (induction loops) and modules for determining the number of wheels (gimbals) on the vehicle axle.
Modification of complexes Bizman 7/T-2-V includes a set of strain-resistor weight-measuring modules, complex of photofixation "BIV 7" and is intended for installation on 2 lanes of transport movement.

Specifications

Limits of permissible absolute error of measurements of centre-to-centre distances TC0,03 m 0.03 m

Tolerance limit of vehicle speed measurement error 1

Limits of allowable absolute error of synchronization of the internal time scale of the complex with the national UTC time scale 1

Boundaries of allowable absolute error (at probability level 0.95 and geometric factor PDOP?3) of coordinates determination of k 5 m

Highest measured vehicle speed 350

Type of product according to PP RF 616 Instruments and other instruments for measurement, control and testing

Smallest measuring limit for axial loads of the TCs 1500 kg

Maximum measuring limit for axial loads of the TCs 20000 kg

Tolerance limit of relative error of measurements of load per axle of the vehicle, load per axle in the group of axles of the ve 10 %

Tolerance limit of relative error of total mass measurements of the vehicle 5 %

Smallest measuring limit of the TC length 3 m

Highest measurement limit of the TC length 30 m

Smallest measurement limit for width and height of the vehicle 1 m

Highest measurement limit for width and height of the vehicle 5 m

Limits of permissible absolute error of TC length measurements 0.6 m

Tolerance limits of absolute error of TC width measurements 0.1 m

Limits of permissible absolute error of TC height measurements 0.01 m

Lowest speed of the vehicle when measuring gross weight, axle load, axle group load, axle load in the axle group of the vehicle 1

Highest speed of the vehicle when measuring gross weight, axle load, axle group load, axle load in the axle group of the vehicle 140

The smallest limit of measurement of total mass and load from a group of vehicle axles (N - number of vehicle axles or number of 1500xN kg

The highest limit of measurement of total mass and load from a group of vehicle axles (N - number of vehicle axles or number of 20000xN kg

Highest measuring limit of the center-to-center distances of the vehicle 32 m
