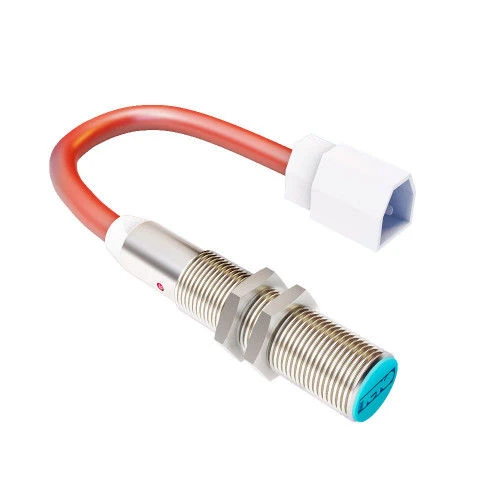

Proximity switch ISBt A27B8-31N-4-LZT5-C-P1

Measurement and Control Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

The inductive contactless switch (sensor) ISBt A27B8-31N-4-LZT5-C-P1 is designed to control the position of the clutch pedal of motor transport. The switch is designed to meet the requirements of GOST 28751-90 "Car electrical equipment. Electromagnetic compatibility. Conductive interference in power supply circuits. Requirements and test methods". ISBt A27B8-31N-4-LZT5-C-P1 has a sensitive surface designed to monitor the position of moving metal objects. When any metal approaches the sensitive surface of the sensor, a threshold device is triggered and the corresponding output signal of the sensor's electronic key is formed, which is used for switching electrical circuits and signalling.

Specifications

Wiring diagram 3-wire

Special purpose Road transport version

With special electrical parameters Increased noise immunity

Working clearance 0...3.2 mm

Operating temperature range -45...65 °C

Supply voltage ripple factor Less than or equal to 15%

For harsh environments For operation in conditions of increased vibration

Operating current range, Irab. Less than or equal to 250 mA

Degree of protection according to GOST 14254-96 IP68

Comprehensive protection Got it

Light indication Got it

Connection / Connection Pin 2108-37244392-01 OST.37.003.032-88

Switching frequency, Fmax 600

Contact type / Output structure NPN Terminating

Voltage drop at Imax, Ud Less than or equal to 2.5 V

Operating voltage range, Urab. 10...30 V

Enclosure(diameter) 8...16 mm

Length 68.5 mm

Diameter of threaded body M12

Housing material LS59-1

Connection method Plug and socket

Nominal sensing distance 4 mm

Mounting type Built-in

Enclosure size, DxWxDl M12x1x68,5

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
