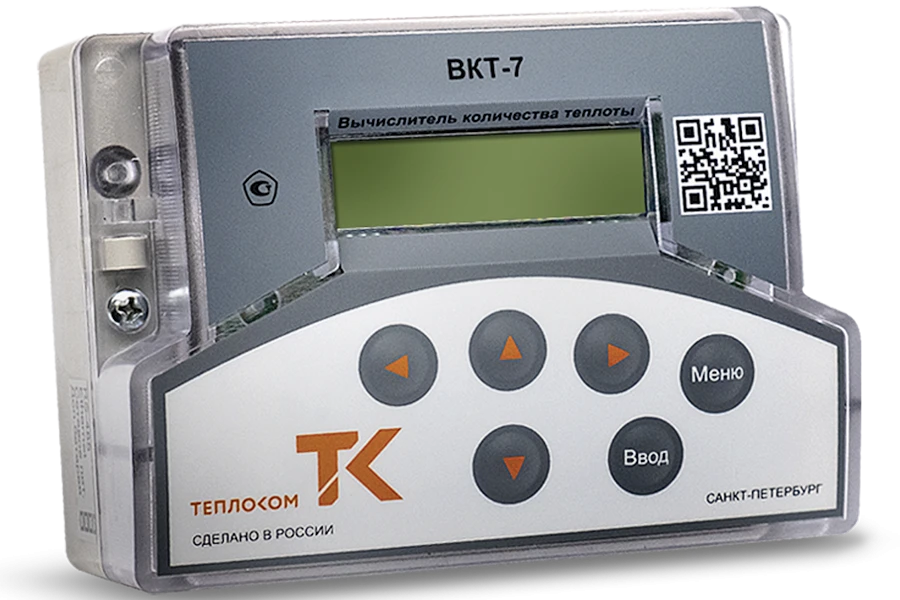

Heat quantity calculators VKT-7

Fluid Control Instruments

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

VKT-7 are designed to measure the output signals of measuring transducers of heat carrier parameters and calculate, based on the results of measurements, the amount of heat (heat energy).
VKT-7 can be used as a part of heat meters and measuring systems designed for measurement of heat carrier parameters (flow, volume, temperature, pressure), quantity of heat (heat energy) and heat carrier in water heat consumption systems, as well as for measurement of quantity of other measured media (e.g. electricity or cold water).
VKT-7 provide measurement of heat energy by one or two heat inputs (TV1 and TV2) represented by closed and/or open water heat consumption systems.

Specifications

Volume flow rate 0...1000000

Water temperature 0...180 °C

Overpressure 0...1.6 MPa

Water temperature difference t1 - t2 0...160 °C

Resistance thermometers (RT) 100M, 100P, 500P, Pt100, Pt500

Overpressure transmitters (OP) 0...1.6 MPa

RS-232 interface 1 pc

RS-485 interface (optional) 1 pc

Extra battery (optional) 1 pc

Power supply unit (optional) 1 pc

Average service life B1/B8 2100/900 MHz a

Average MTBF not less than 80000

Warranty period of operation 6 a

Inspection interval 4 a

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
