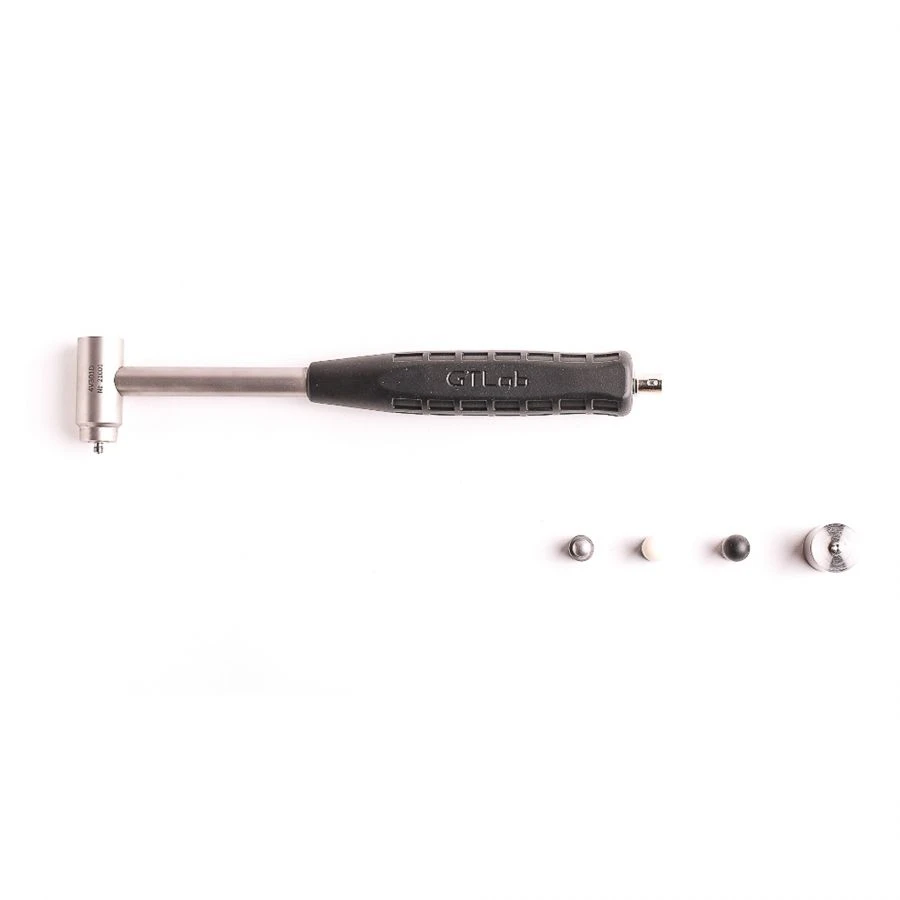

Impact hammer 4V302D

Vibration Measurement Equipment

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Available Models

Impact hammer 4V301D

Description

The impact hammers with integrated force sensor (to determine the degree of applied impact) are designed to transmit impulse impacts on the object of study. This enables modal analysis of mechanical systems, i.e. to determine the frequency characteristics of the object under test (resonances, shapes, frequencies and amplitudes of vibrations). GTLab's range of impact hammers includes samples from miniature to large-sized (from testing of small industrial objects, turbine blades and housing parts, to structures of building projects and foundations).

Specifications

Conversion factor (± 15%) 10 mV/N

Peak value of dynamic force 500 H (with steel striker), 100 H (with plastic striker), 70 H (with rubber striker).

Impact pulse durations 0.1 ... 0.4 ms (with steel striker) | 0.2 ... 0.5 ms (with steel striker and additional weight) | 0.5 ... 0.9 ms (with plastic striker) | 0.7 ... 1.2 ms (with plastic striker and additional weight) | 1.3 ... 4 ms (with rubber striker) | 4 ... 7 ms (with ru

Hammer weight without additional weight and striker 200 ?

Additional weight 30 ?

Striker weight 13 g (made of steel), 14 g (made of plastic), 14 g ( made of rubber)

Operating temperature range -40 ... +125 °?

Power supply: ? voltage ? current + (18 ... 30) V 2 ... 20 mA

Noise level, RMS (1 Hz ... 10 kHz) 1 · 10–3 H

DC output voltage level 8 ... 13 ?

Output impedance < 100 ohms

Connector type BNC

Type of product according to PP RF 616 Instruments and other instruments for measurement, control and testing

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
