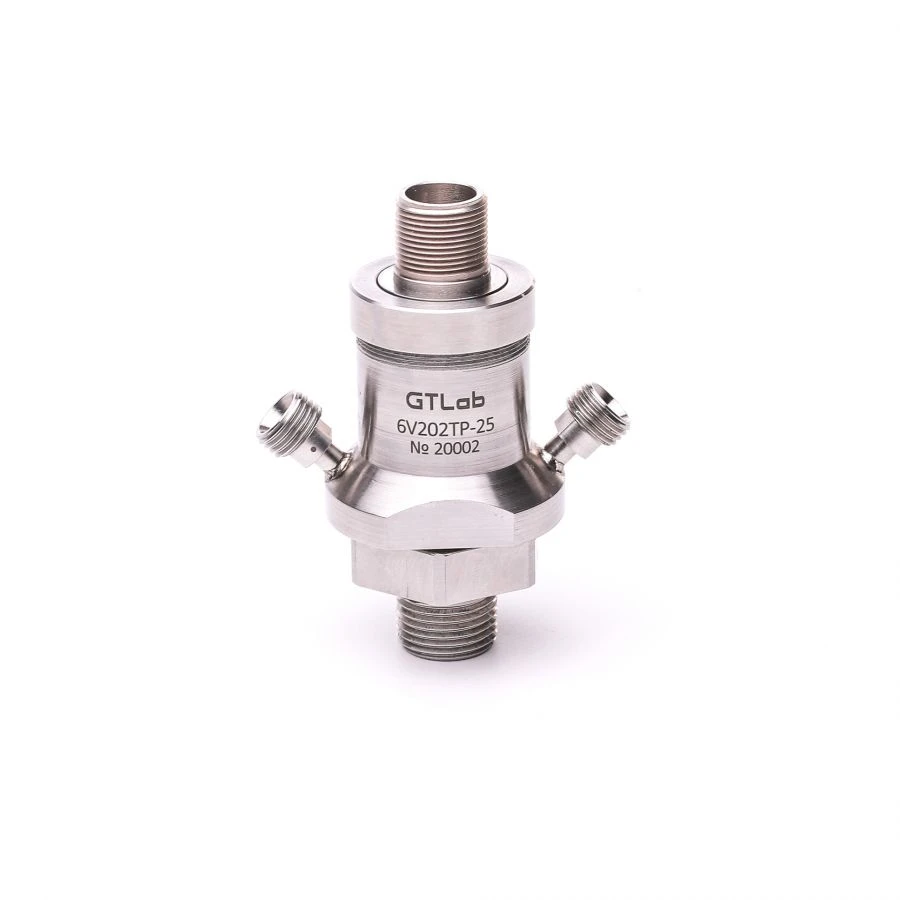

Static dynamic pressure sensor 6V202TP-XX

Vibration Measurement Equipment

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Available Models

Static dynamic pressure sensor 6V202TP-XX-5

Description

Pressure sensors 6V202 are used for research and control of dynamic processes in internal combustion engines, gas turbine engines, hydraulic and pneumatic systems. They are designed to measure pressure in shock and detonation waves in gas and liquid aggressive media at temperatures up to 1000 °C with water cooling and up to 300 °C without cooling. They provide registration of full pressure in the frequency range up to 8 kHz, including static component.

Specifications

Measuring range -0.1 to 1.6 MPa | -0.1 to 2.5 MPa | -0.1 to 6 MPa | -0.1 to 16 MPa

Output voltage 10 ?

Natural frequency in fixed state 18 kHz | 22 kHz2 | 32 kHz | 55 kHz

Acceleration sensitivity < 0.001 bar/g

Ambient temperature -50 ... +85 °?

Temperature of the medium -50 ... +300°C (without cooling) +1000°C (with cooling)

Power supply voltage +(9 ... 15) ?

Consumption current < 30 mA

Housing material stainless steel

Weight (without cable) 300 ?

Type of product according to PP RF 616 Instruments and other instruments for measurement, control and testing

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
