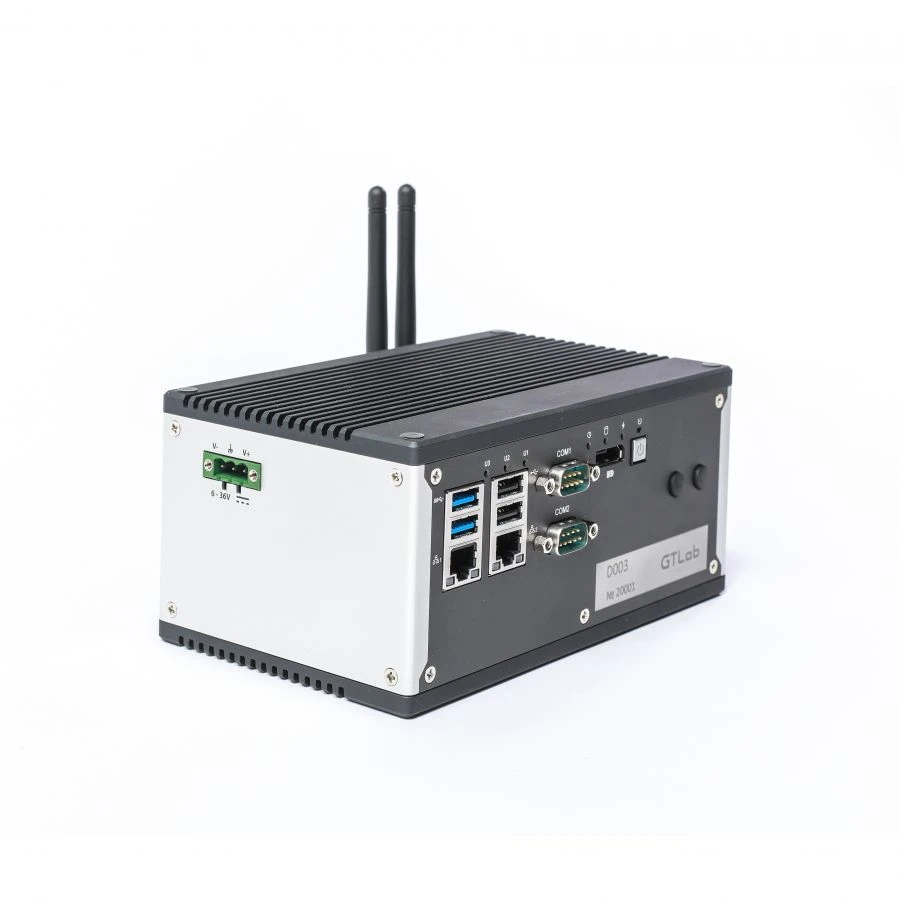

Data acquisition module D003

Vibration Measurement Equipment

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

The D003 data acquisition module allows processing, storage and transmission of signals from analogue transducers (including IEPE). D003 does not require additional cooling system and is used for monitoring and diagnostics of industrial objects and mechanisms with the possibility of automatic response to abnormal modes of operation (adjustment, protective shutdown, notification, etc.). The device is made in industrial PC form factor on the basis of 4-channel 24-bit high-resolution ADC. Integration of modules into the local network of the enterprise can be performed by means of 2 built-in Gigabit Ethernet interfaces or Wi-Fi module, which allows to create a distributed system of vibration diagnostics at the enterprise with centralised cloud data storage. The module includes diagnostic software "GTLd", which allows analysing the condition of the following types of mechanisms: rolling bearings, friction bearings, ball screws, belt, gear, chain transmissions, pumps, comp...

Specifications

ADC sampling frequency 128 kHz

Type of input connectors BNC

Interface 2x USB 2.0 + 2x USB 3.0

Operating temperature 0 ... +55 °?

Nutrition 6 - 36 V (DC)

Measured DC and AC voltage ranges ± 10,000 mV

Number of ADC bits 24 bits

Input impedance 200 kOhm

Instrument synchronization (number) 8 pcs

Frequency range 50000

Possibility to connect sensors according to IEPE standard (2 mA, 24 V) Got it

Processor Intel Atom® x7-E3950 processor

Video output 1x DisplayPort

RAM DDR3L 1600 SODIMM 4 GB

Data storage subsystem Factory installed 128 GB mSATA SSD

Network interface 2x GbE LAN (Intel® I210-IT)

Serial ports 2x COM (2 x RS-232/422/485)

Expansion slots 2x Mini PCIe card slots

Wireless communication Wi-Fi Kit

Power consumption, total subsystem load (platform) 25 W

Power consumption, total subsystem load (processor) 35.2 W

Power consumption, full load by subsystem (USB peripherals) 38 W

Operating system MS Windows 10

Type of product according to PP RF 616 Instruments and other instruments for measurement, control and testing

Number of analog inputs 4

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
