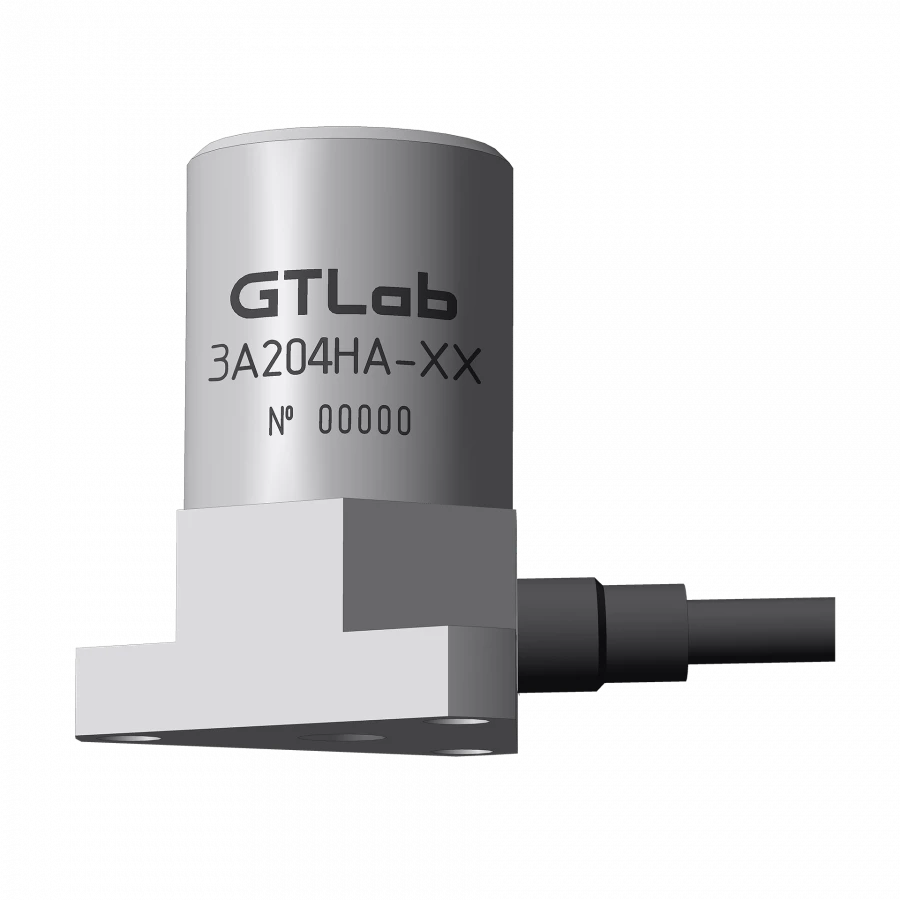

Vibration displacement sensor 3A204HA-XX

Vibration Measurement Equipment

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Displacement vibration transducers with standard current output 4 ... 20 mA. They are intended for measurement of vibration displacement amplitude of industrial equipment in conditions of strong industrial noise. Increased noise immunity (including protection against pyroeffect) is achieved by design features of the shear sensing element, electronic board, internal screen and its electrical isolation from the object of research.

Technical Specifications

Vibration displacement to current signal conversion factor 4 ... 20 mA, (± 10 %)	0.2 mA/?m \| 0.1 mA/?m \| 0.05 mA/?m \| 0.025 mA/?m
Measured vibration displacement range, magnitude	80 µm \| 160 µm \| 320 µm \| 640 µm
Unevenness of frequency response relative to the value at the base frequency 159.15 Hz, within the limits of	3 to minus 12.5%
Relative transverse conversion ratio	< 5 %
Coefficient of influence of ambient air temperature, within the limits of	± 0,2 %/°?
Operating frequency range of measured vibration displacement	5...500
Sensor supply voltage	10...24 V
Time to establish operating mode	< 4 ?
Housing material	stainless steel
Explosion protection	1Ex d IIC T6...T4 Gb, 0Ex ia IIC T6...T4 Ga
Degree of protection against external influences	IP67
Type of product according to PP RF 616	Instruments and other instruments for measurement, control and testing
Operating temperature range	-40...85 °C
Weight (without cable)	145 g

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
