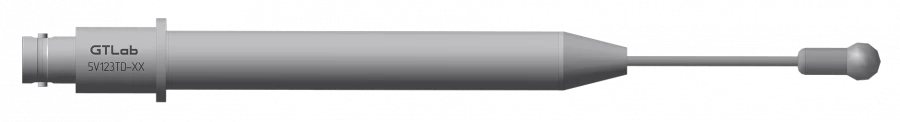

Dynamic Pressure Transmitters 5V123TD-XX

Vibration Measurement Equipment

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Dynamic pressure sensors with spherical sensing element are designed for measuring parameters of shock waves and rapidly variable pressures in liquid and gaseous media.

Technical Specifications

Type of product according to PP RF 616	Instruments and other instruments for measurement, control and testing
Upper measurement limit	1 000 kPa \| 2 500 kPa \| 6 000 kPa \| 10 000 kPa
Conversion factor	5 mV/kPa \| 2 mV/kPa \| 0.8 mV/kPa \| 0.5 mV/kPa
Limits of permissible basic error reduced to the upper limit of measurement	± 2%
Natural frequency in fixed state	> 25 kHz
Operating temperature range	- 30 ... + 50 °?
Output impedance	< 100 ohms
Power supply: ? voltage ? current	+ (15 ... 30) V 2 ... 20 mA
DC output voltage level	8 ... 11 ?
Sensing element material	CTC-19
Housing material	stainless steel
Housing design	smooth
Degree of protection against external influences	IP65
Weight (without cable and connector)	110 ?
Type of product according to PP RF 616	Other instruments and apparatus for measuring, controlling and testing; Industrial measuring and controlling machines; Other instruments and apparatus for measuring, controlling and testing.

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
