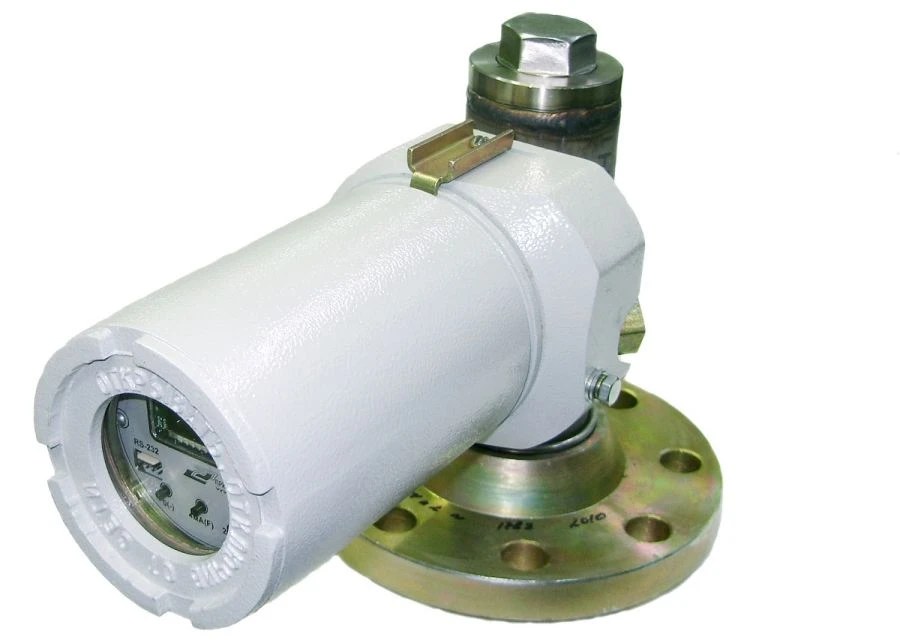

Electric buoy level transmitter Sapphire-22MP-Du

Level Measurement Instruments

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Sapphire-22MP-DU transducers are designed for operation in automatic monitoring, regulation and control systems of technological processes, including those with explosive production conditions and provide continuous conversion of the measured liquid level (models 2620, 2622, 2630, 2640, 2650) or the level of the interface between two liquid phases (model 2615), both neutral and aggressive media into a standard current and (or) digital on the basis of HART-protocol output signal of remote transmission.

Technical Specifications

Density	400 to 2000kg/m3
Weight of transducers (depending on model)	13.7...31.7 kg
Digital	By HART protocol (in 4-20mA circuit)
Standard current	0-5 mA; 4-20mA
Temperature when using TP	-200-50S; +120+450S
Temperature	-50+120 ?
Permissible basic reduced error	+/- 0,25%; +/- 0,5%, +/- 1,0%
Model 2615	0.6m; 1.0m; 1.6m
Model 2650	1,0m; 1,6m; 2,0m; 2,5m
Models 2620, 2622, 2630, 2640.	0.25m; 0.4m; 0.6m; 0.8m; 1.0m; 1.6m; 2.0m; 2.5m; 3.0m; 4.0m; 6.0m; 10.0m
Designation of version 01	Buick - st. 12Cr18Ni10T, body - st. 20, outlet diaphragm - st. 36NiCr, heat sink (TP) - st. 20 or st. 12Cr18Ni10T.
Designation of version 02	Bead - st. 12Cr18Ni10T, body - st. 12Cr18Ni10T, outlet diaphragm - st. 36NiCr, heat sink - st. 20 or st. 12Cr18Ni10T.
Model 2615	2.5 MPa
Model 2650	20 MPa
Model 2640	16 MPa
Model 2630	6.3 MPa
Model 2020, 2620	4 MPa

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
