Overflow prevention sensor DLOK-PP

Level Measurement Instruments

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

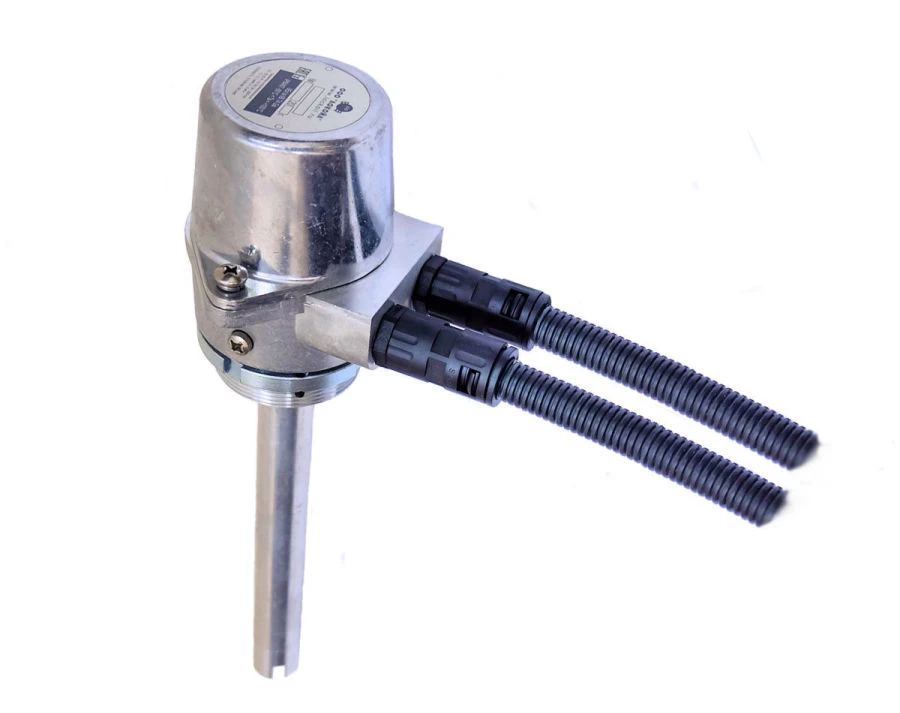

Sensor DLOK-PP explosion-proof 0?x ia IIB T4 to prevent overflow (overfill prevention) of the tank truck compartment when it is loaded with oil products. The sensor does not belong to measuring instruments and has no accuracy characteristics. It is mounted on the tanker's manhole cover, supplied with G2 nut and O-ring. Conforms to EN 13922:2003. In-line connection of sensors on a five (5) wire line. Explosion-proof version with marking on the outside of the sensor cover. Metal sensor cover with rubber seal protects the sensor and wiring elements from water and dirt. The height of the cover allows the length of the sensor tube to be adjusted in the range of 50 mm.

Specifications

Power supply voltage 15 V

Degree of protection against external influences, IP 67

Ambient temperature range, C -50...100 °C

Fluid operating temperature range, C -40...100 °C

Current consumption, mA no more than 20

Voltage Ui, V 22 V

Current Ii, mA 250

Pi power 0,7

Inductance Li, mHn negligibly small

Capacity Ci, µF 0,1

Capacity of Co, µF 1,1

Inductance Lo, mGn 1

Current Io, mA 240

Inductance Lo, mGn 1

Outside diameter of protective corrugated sleeve, mm 15,8

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
