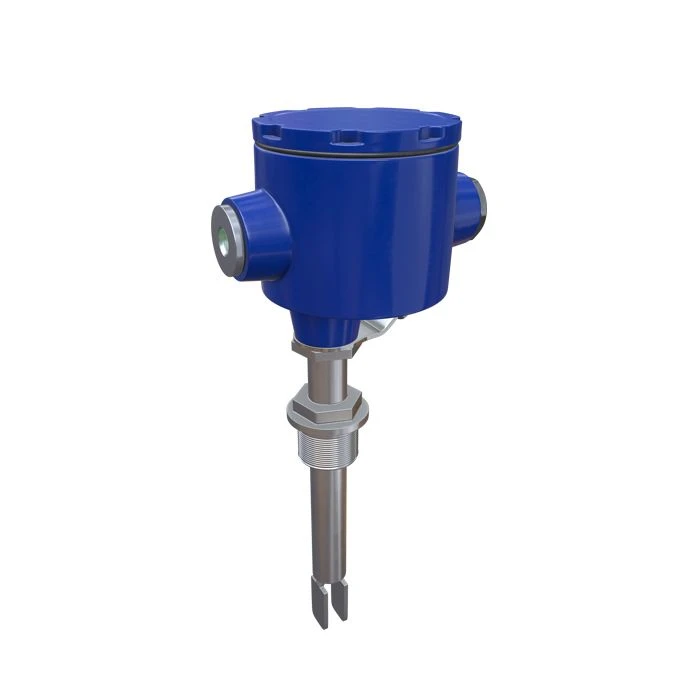

Liquid level switch SZHU-1-VB

Level Measurement Instruments

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

The vibration level switch SZHU-1-VB is designed to control the level of liquids or bulk products in open or closed, including pressurised containers, as well as in process units of industrial facilities of petrochemical, pharmaceutical, chemical, food and other industries. Due to the principle of operation, the sensing element can self-clean itself from adhering and solidifying media.

Specifications

Power supply voltage 24 V

Service life B1/B8 2100/900 MHz a

Degree of protection of the outer shell IP67

Operating medium temperature -120 to +300 °C

Working medium pressure 0 to 35 MPa

Minimum density of the medium 450

Ambient temperature range From -55 to +75 °C °C

Number of control points 1 pc

Length of immersion part 60-8000 mm

Stand height from 10 mm

Sealing unit Connector, external thread; union nut, internal thread; flanged (flange plug or blind flange); special version upon prior agreement

Sensing element Vibration fork

Location of the device on the object arbitrary

Current consumption Not more than 50 mA

Alarm delay time 0,1 - 10

Types of output signals Relay output, 4/20 mA two-wire system; Namur; Special signal by prior agreement.

Voltage switched by the output key of the signaling device From 14 to 28 V, with current not exceeding 100 mA

Explosion protection Without explosion protection; 1 Ex d llC T6 Gb X (flameproof enclosure); 0 Ex ia llC T6 Ga X (intrinsically safe circuit)

Material of the signaling device in contact with the working medium Stainless steel 12?18?10?

Material and type of enclosure Aluminum alloy (standard); Stainless steel 12?18?10? (or equivalent)

Model Liquid level switch SZHU-1-VB

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
