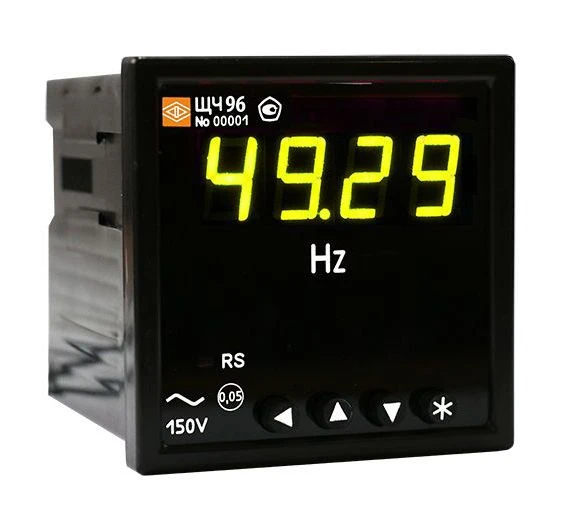

Digital device for AC frequency measurement ShchCh96
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Technical Specifications
| Overall dimensions, mm | 96x96x103 (with back cover), 96x96x75,6 (without cover) |
|---|---|
| Weight, kg, not more | 0,4 |
| LED indication | Seven-segment indicators (4 or 5 indicators in a block) depending on the digit capacity according to the order; single LED indicators showing interface operation, status of discrete outputs. Sign height: 14.2 mm (for the device with digitly |
| Measuring range | 10...9999 Hz, 10...15000 Hz |
| Input voltage range | Unom = 150 V (22,5...180 V), Unom = 500 V (75...600 V) |
| Maximum reading range | Digit capacity 4.0: from 0 to 9999; digit capacity 5.0: from 0 to 99999 |
| Measurement time | 0,1 ? |
| Basic error | Frequency: ±0.05% (4.0 digit); ±0.01% (5.0 digit); analogue output: ±0.5% |
| Galvanic isolation of input and output circuits, power supply circuits | Got it |
| RS485 communication interface | Quantity: 0, 1, 2; Modbus RTU protocol |
| Analog outputs | Quantity: 0, 1, 2; Ranges: 0...5 mA, 4...20 mA, 0...20 mA, 0...2.5...5 mA, 4...12...20 mA, 0...10...20 mA |
| Discrete outputs | Quantity: 0, 1, 2; DC voltage 350 V, 200 mA or AC voltage 250 V, 200 mA |
| Power supply voltage | 12VH - (12 +6/-3) VDC; 24VH - (24 +12/-6) VDC; 220VU - 85 to 264 VAC with frequency (50 ± 0.5) Hz or 120 to 370 VDC; 230V - 85 to 264 VAC with frequency (50 ± 0.5) Hz |
| Power consumption from the power supply circuit, not more | 3,5 V-A for devices with supply voltage 12VH, 24VH; 6,0 V-A for devices with supply voltage 220VU, 230V |
| Reprogramming | Via "Configurator" program (RS485 interface); via front panel buttons |
| Operating temperature range | - 40 to + 70 °C (relative humidity 95 % at +35 °C) |
| Degree of protection | IP50 |
| Mounting | In the shield |
| Inspection interval | 10 years |
| Warranty period of operation | 24 mos. |
| Average service life, at least | 20 years |
| Average MTBF | 200000 ? |
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
