Information board T54

Electrical Measuring Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

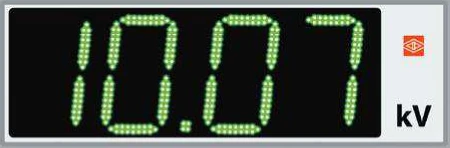

Digital display boards T54 are designed to measure and display any electrical and physical quantities (for example: AC or DC current, voltage, pressure, temperature, frequency, etc.), as well as values received in digital form via RS485 interface under control of Modbus RTU protocol. Advantages: maximum parameter display range from minus 1999 to plus 9999; change of operating mode settings by remote control or via RS485 interface; brightness control (12 brightness levels); setting min and max settings; programming of input signal parameters, change of display scale; formation of discrete signal for control of switching equipment.

Technical Specifications

Overall dimensions, mm	500x170x40
Weight, kg, not more	1,6
Parameter display	Measured value of input signals (any electrical and physical quantities); information received via RS485 interface; temperature value (optional)
Input signal	Direct current and voltage: 60 mV; 75 mV; 100 mV; -75...0...75 mV; 5 V; 10 V; 20 V; 50 V; 100 V; 200 V; 250 V; 500 V; 2 mA; 5 mA; 10 mA; 20 mA; 4...20 mA; -5...0...5 mA; AC current and voltage: 100 mV 5 V; 10 V; 20 V; 50 V; 100 V; 200 V; 250 V; 380
Maximum reading range	-1999 to +9999
Conversion time	0,5 ?
Basic error limits	± 0,5 %
Galvanic isolation of input and output circuits, power supply circuits	Got it
RS485 communication interface	Quantity: 1; Modbus RTU protocol
Discrete outputs	Quantity: 1 DC voltage 300V, 100mA or AC voltage 200V, 100mA
Height of the indicator sign	140 mm
Power supply voltage	220VU - from 85 to 253 V AC with frequency (50 ± 0,5) Hz or from 120 to 265 V DC; 24VN - from 18 to 36 V DC.
Power consumption from the power supply circuit, not more	17 B-A
Reprogramming	By remote control; via RS485 interface
Operating temperature range	From +5 to + 50 °C
Degree of protection	IP50
Average service life, at least	10 years
Average MTBF, not less than	50000 ?

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
