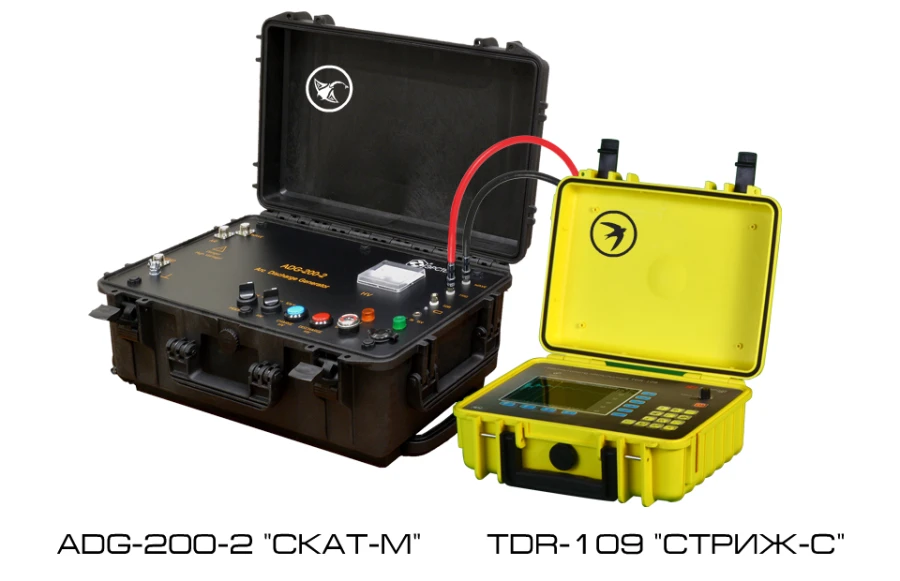

Remote localisation kit TDR-109 STRIZh-S + ADG-200-2 SKAT-M

Electrical Measuring Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Purpose of the set: Realisation of modern methods of WMD in a small-sized complex with autonomous power supply. Preliminary localisation of both low-resistance and high-resistance damages by the following flameless methods of WMD: pulse method (method of pulse reflectometry, TDR) pulse-arc method (method of reflection from short-term electric arc, ARM) method of oscillating discharge by current (wave by current, ICE).

Technical Specifications

Operating temperature range at ADG-200-2	From -20 C to +40 C .
Dimensions on ADG-200-2	570x350x200 mm
Maximum permissible pulse voltages on all low-voltage connectors intended for connection to the OTDR, not to	On TDR connector - 60V;on WAVE connector - 120V;on TRIG connector - 20V.
Output voltage range of the ADG-200-2 generator	0 to 10 kV
Overall dimensions for TDR-109.	270x246x124 mm
Capacity of non-volatile memory for OTDR-109.	Not less than 1000 reflectograms.
Setting range of shortening factor on TDR-109.	From 1.000 to 3.000, in increments of 0.001.
Range of matched resistances on TDR-109	From 25 ohms to 500 ohms.
Distance measurement error on TDR-109	0.01% to 0.2% of the subrange from 12.5 cm to 8 m at CG=1.500.
Range of distance measurement on TDR 109	0 to 128000 m (0 to 1280 µs).
Display on TDR 109	Colour TFT 5,7 (640x480 pixels)
TDR 109 measurement modes	Pulsed (TDR);pulse-arc (ARM);current waves(ICE);voltage waves (Decay).

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
