Instrument for measuring alternating current, voltage and frequency ShchP01P

Electrical Measuring Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

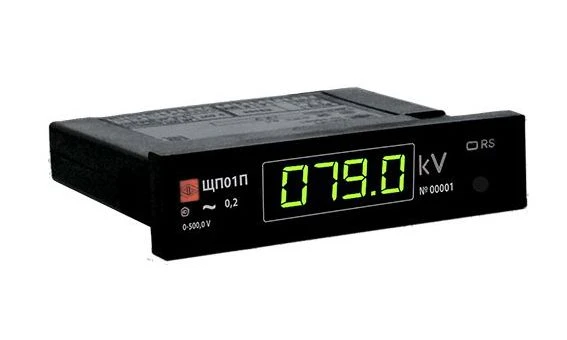

Digital small-sized devices ShchP01P are designed to measure and convert the effective value of current, voltage and frequency in single-phase electrical networks and other AC circuits into output unified DC signals and transfer the measured values via serial digital interface RS485.
Single-phase devices can be used in three-phase electrical networks for measurement and conversion of parameters of one phase. Advantages: unique overall dimensions 96×24×90 mm, accuracy class 0,2 or 0,5, size of indicators 9,9 mm, extended operating temperature range from -40 °?...+50 °?. ShchP01P is included in the State Register of measuring instruments of the Russian Federation No. 64095-16. Interverification interval - 10 years.

Specifications

Mounting In the shield

Weight, kg, not more 0,2

Overall dimensions, mm 96×24×86

LED indication 1 block of seven-segment indicators (4 indicators per block)

Input signal 100 mV; 150 mV; 200 mV; 250 mV; 500 mV; 1000 mV; 2000 mV; 1 V; 2 V; 5 V; 10 V; 20 V; 50 V; 100 V; 150 V; 200 V; 200 V; 250 V; 380 V; 500 V; 2 mA; 5 mA; 10 mA; 20 mA; 50 mA; 100 mA; 200 mA; 500 mA; 1000 mA; 2000 mA; 1 A; 2 A. Connection via transformer is p

Frequency range of measured / converted signals 45 to 65 Hz (default), 300 to 500 Hz (optional, when ordering)

Maximum reading range 0 to 9999

Measurement time 0,1 ?

Basic error Current and voltage: ±0.2 %, ±0.5 %; frequency: ±0.01 Hz, ±0.1 Hz; analogue output: ±0.5 %

Galvanic isolation of output circuits, power supply circuits Got it

RS485 communication interface Quantity: 0 or 1; Modbus RTU protocol

Analog outputs Quantity: 0, 1, 2; Ranges: 0...5 mA, 4...20 mA, 0...20 mA, 0...2.5...5 mA, 4...12...20 mA, 0...10...20 mA

Discrete outputs Quantity: 0, 1, 2; DC voltage 300 V, 100 mA or AC voltage 200 V, 100 mA

Power supply voltage 5V - (5 ± 0.25) VDC, 12V - (12 ± 0.6) VDC, 24V - (24 ± 1.2) VDC

Power consumption from the power supply circuit, not more 2,7 V-A

Reprogramming Via "Configurator" program (RS485 interface); via front panel button

Operating temperature range From -40 to +50 °C (relative humidity 95% at +35 °C)

Degree of protection IP50

Performances General industrial; for operation at NPPs (safety class 4 according to NP-001-2015)

Inspection interval 10 years

Warranty period of operation 36 mos.

Average service life, at least 20 years

Average MTBF 200000 ?

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
