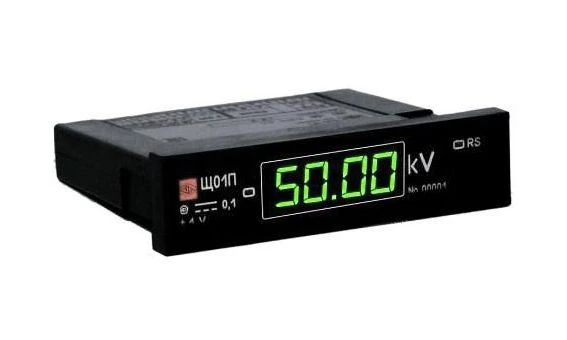

Instrument for measuring DC current and voltage small-sized Shch01P

Electrical Measuring Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

Digital ammeters, voltmeters Shch01P are designed to measure and convert the value of current and voltage in electric networks of direct current into output unified signals of direct current and transmission of measured values through serial digital interface RS485 (if available).
Advantages: unique overall dimensions 96×24×86 mm; accuracy class 0,1 or 0,2; extended operating temperature range from -40 °? to +50 °?; height of indicators - 9,9 mm. Shch01P is included in the State Register of measuring instruments of the Russian Federation No. 64095-16. Interverification interval - 10 years.

Specifications

Overall dimensions, mm 96×24×86

Weight, kg, not more 0,2

LED indication 1 block of seven-segment indicators (4 indicators per block) for displaying voltage or current values

Height of indicator sign, mm 9,9

Input signal 60 mV, 75 mV, 100 mV, 150 mV, 200 mV, 250 mV, 500 mV, 1000 mV, 2000 mV; 1 V, 2 V, 5 V, 10 V, 2....10 V, 20 V, 50 V, 100 V, 150 V, 200 V, 250 V, 300 V, 500 V; 2 mA, 5 mA, 10 mA, 20 mA, 4...20 mA, 50 mA, 100 mA, 200 mA, 500 mA, 1000 mA, 2000 mA; 1 A, 2 A. Po

Maximum reading range From -9999 to +9999

Measurement time 0,1 ?

Basic error Current and voltage: ±0.1, ±0.2 %; analogue output: ±0.5 %

Galvanic isolation of output circuits, power supply circuits Got it

RS485 communication interface Quantity: 0 or 1; Modbus RTU protocol

Analog outputs Quantity: 0, 1, 2; Ranges (reprogrammable): 0...5 mA, 4...20 mA, 0...20 mA, 0...2.5...5 mA, 4...12...20 mA, 0...10...20 mA

Discrete outputs Quantity: 0; 1; 2; DC voltage 300 V, 100 mA or AC voltage 200 V, 100 mA

Power supply voltage 5V - (5 ± 0.25) Vdc; 12V - (12 ± 0.6) Vdc; 24V - (24 ± 1.2) Vdc

Power consumption from the power supply circuit, not more 2,7 V-A

Reprogramming Via "Configurator" program (RS485 interface); via front panel button

Operating temperature range From -40 to +50 °C (relative humidity 95% at +35 °C)

Degree of protection IP50

Resistance to mechanical influences Group 4 according to GOST 22261-94

Electromagnetic compatibility GOST R 51317.6.5-2006 for class A equipment

Interference immunity Functioning quality criterion A according to GOST R 51317.6.5-2006

Industrial noise level GOST 30805.22-2013 for class A equipment

Mounting In the shield

Performances General industrial; for operation at NPPs (safety class 4 according to NP-001-2015)

Inspection interval 10 years

Warranty period of operation 36 mos.

Average service life, at least 20 years

Average MTBF 200000 ?
