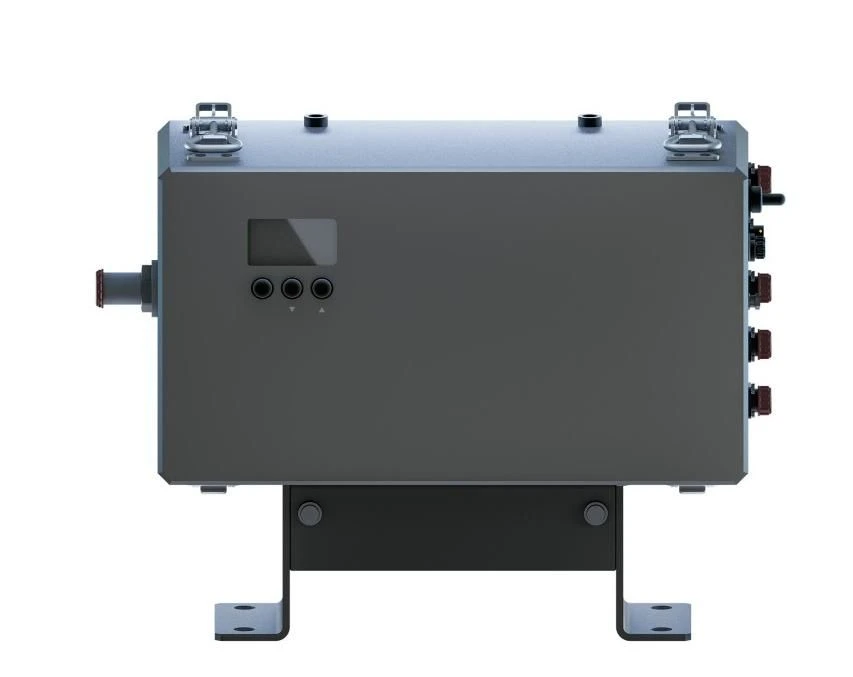

Detection unit BDAS-04P

Automatic Control Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

Designed for measuring the volumetric activity of radioactive aerosols (alpha and beta radiation)

Specifications

Number of interfaces RS-485/422/232 2 pc

Number of channels 2 pc

Atmosphere type II, III and IV

Degree of protection (IP) IP65

EMC group |||

Seismic resistance category I and II

Safety class according to NP-001 3H and 3NU

Weight 85 kg

Overall dimensions (H x W x D), mm 575x440x327

Operating temperature range -5...55 °C

Basic relative error of measurements, % For alpha-active radionuclides for the range from 9.0x10E-3 to 1.0x10E0: +/- 50, for the range from 1.0x10E0 to 2.0x10E+5: +/-20; For beta-active radionuclides from 2.0x10E-2 to 1.0x10E0: +/-50, for the range from 1.0x10E0 to 1.010E+6: +/-2020.

Measurement range of volumetric activity, Bq/m3 Aligned Alpha 2.0x10E-2; Aligned Beta: 5.0x10E-2; Aligned Alpha 9.0x10E-3; Aligned Beta: 2.0x10E-2 - Aligned Alpha 2.0x10E+5; Aligned Beta: 5.0x10E+6; Aligned

Power consumption 150

Number of measuring channels 2 pc

Interface type RS-485, RS-232

Power supply voltage 220 V

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
